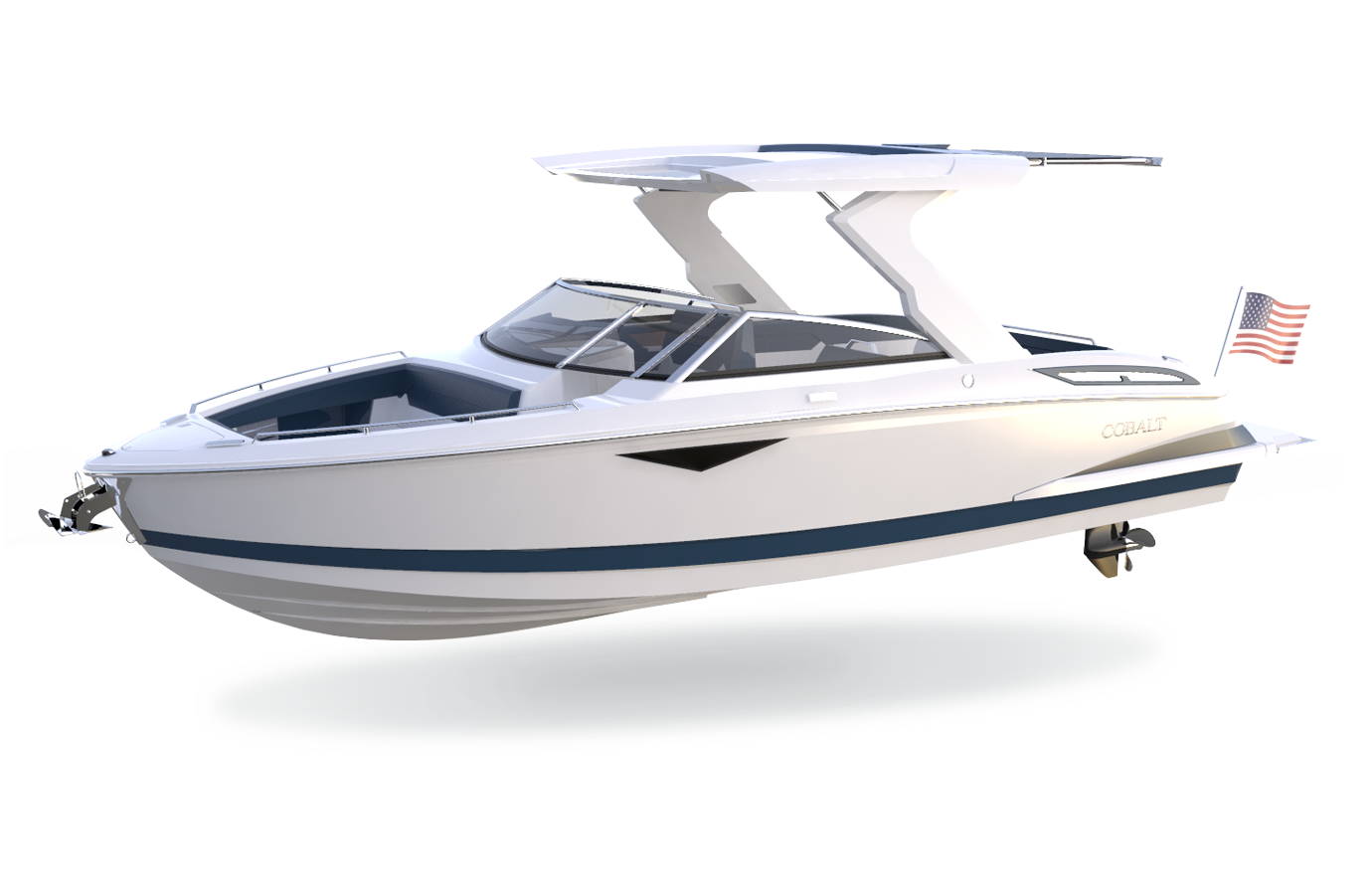

Cobalt A29 Sterndrive

Name: A29
Brand: Cobalt Boats
SKU: A29

Spacious luxury for elevated days on the water.

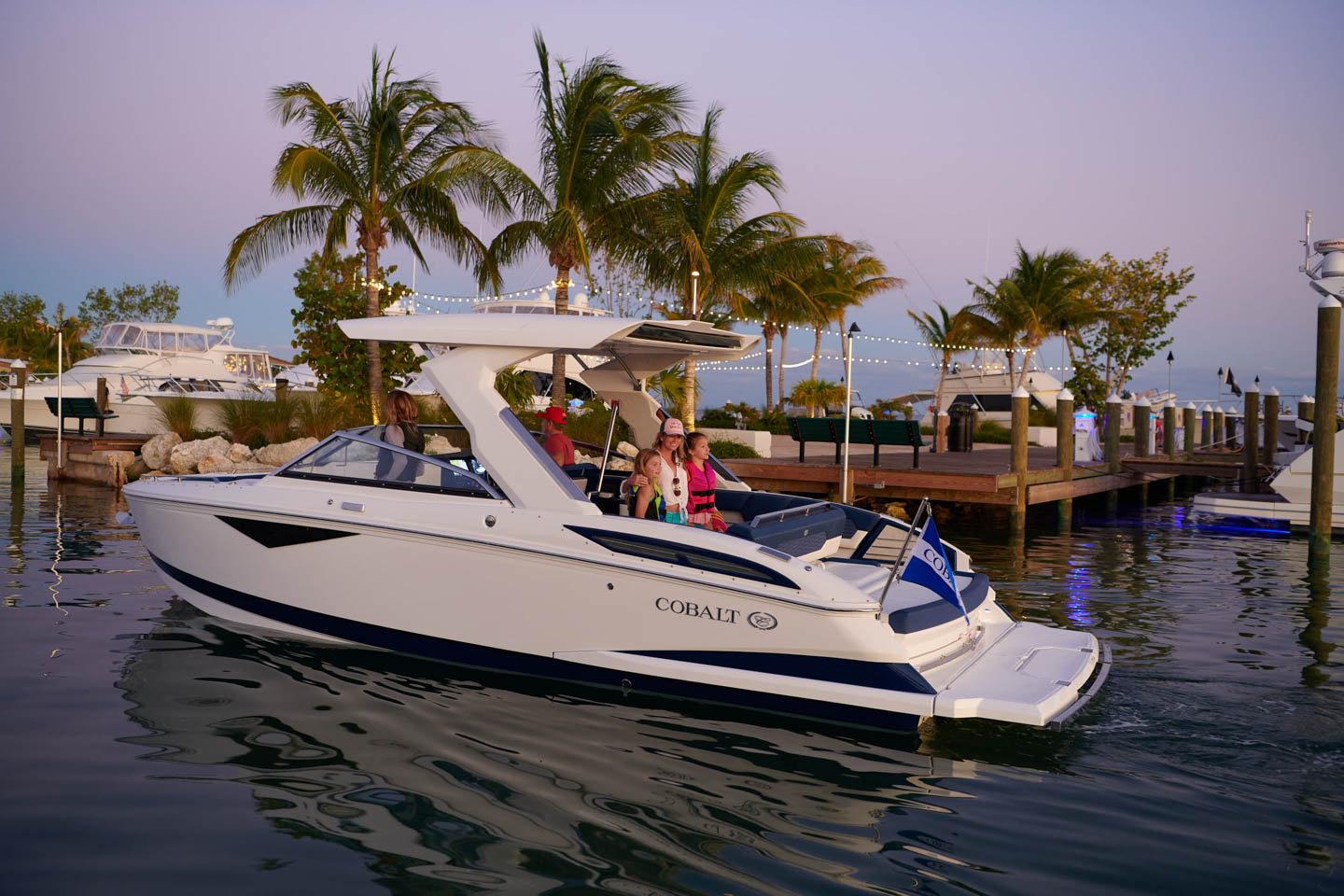

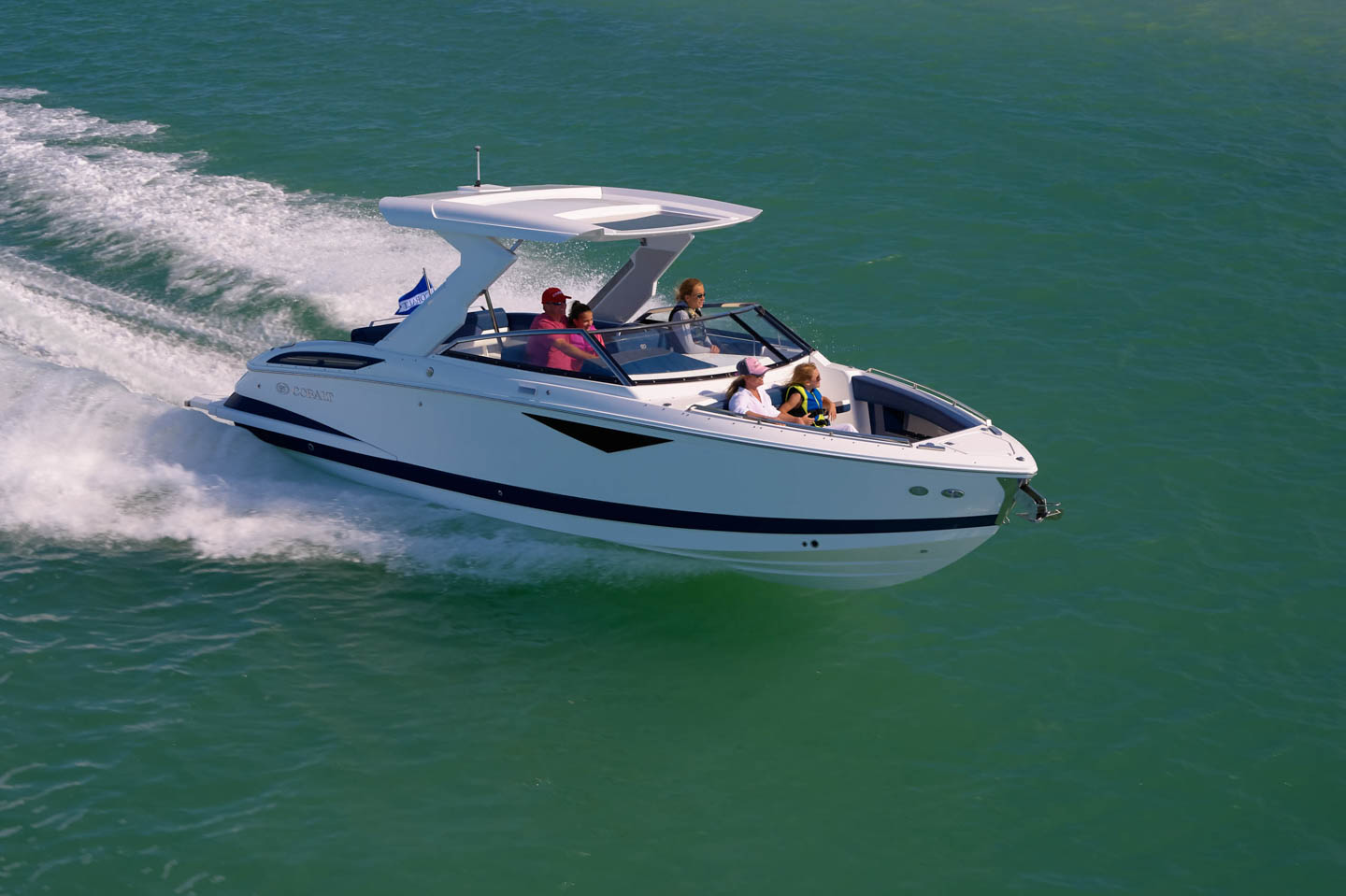

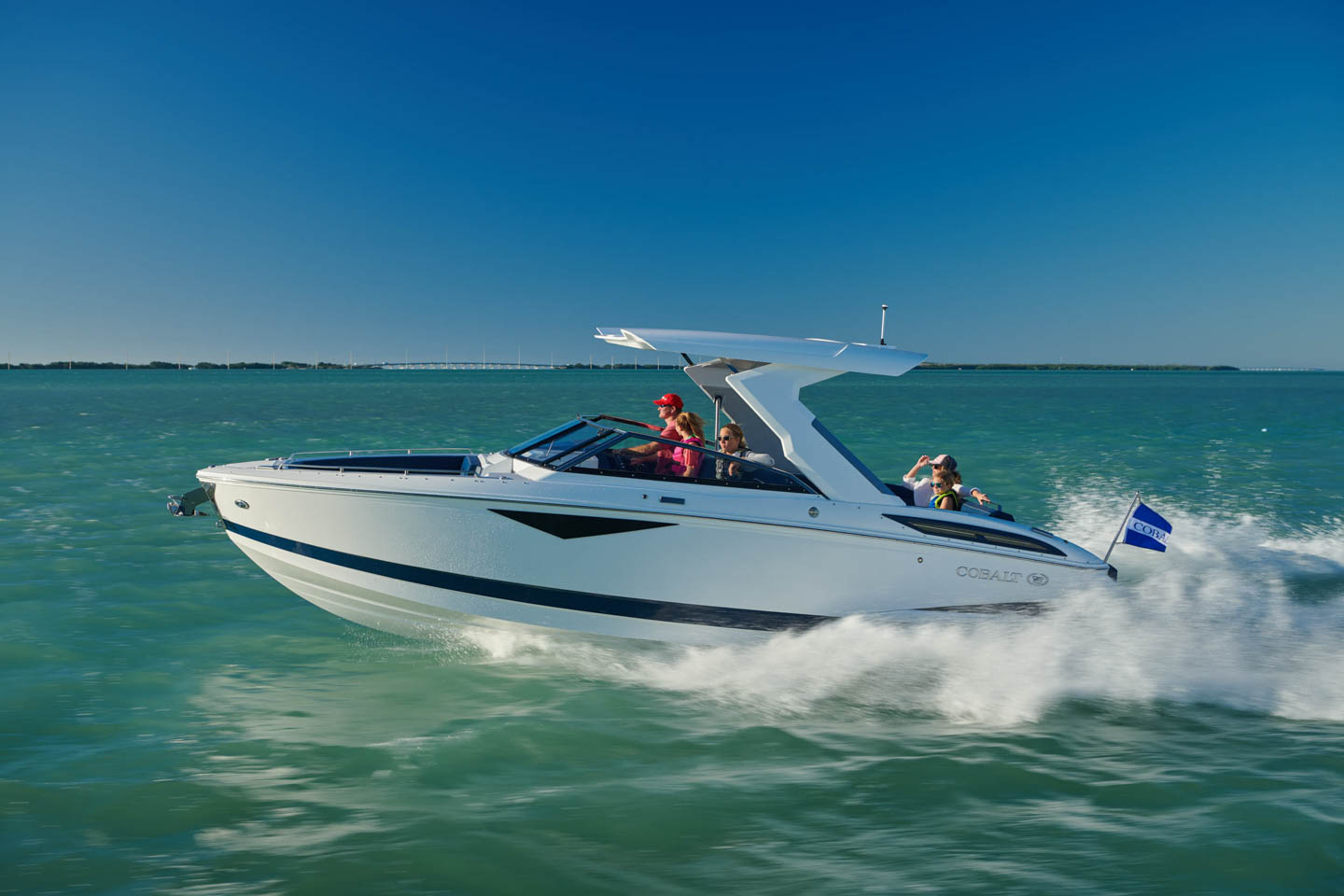

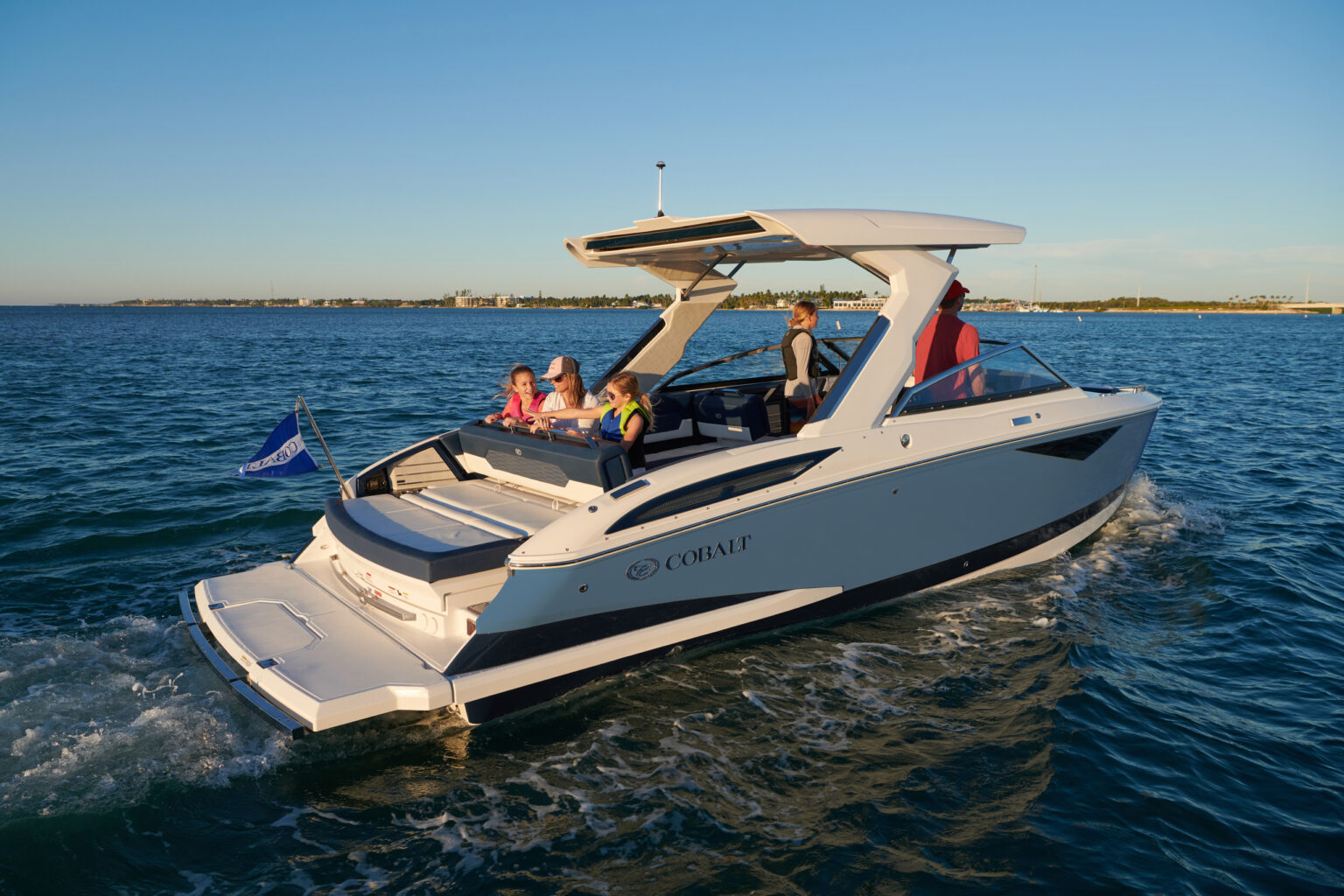

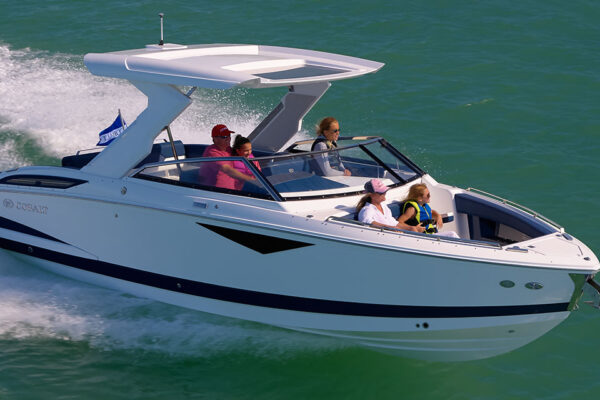

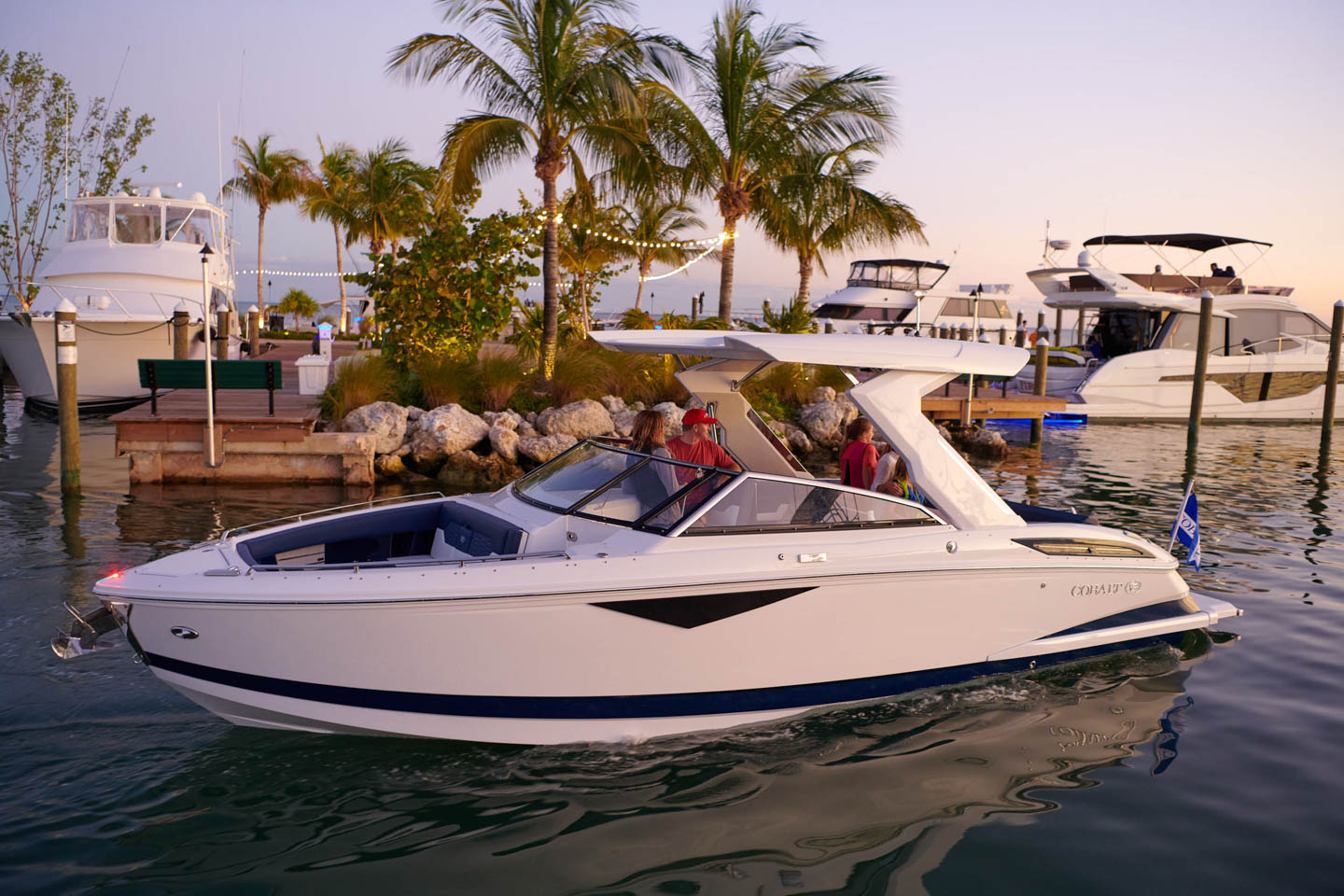

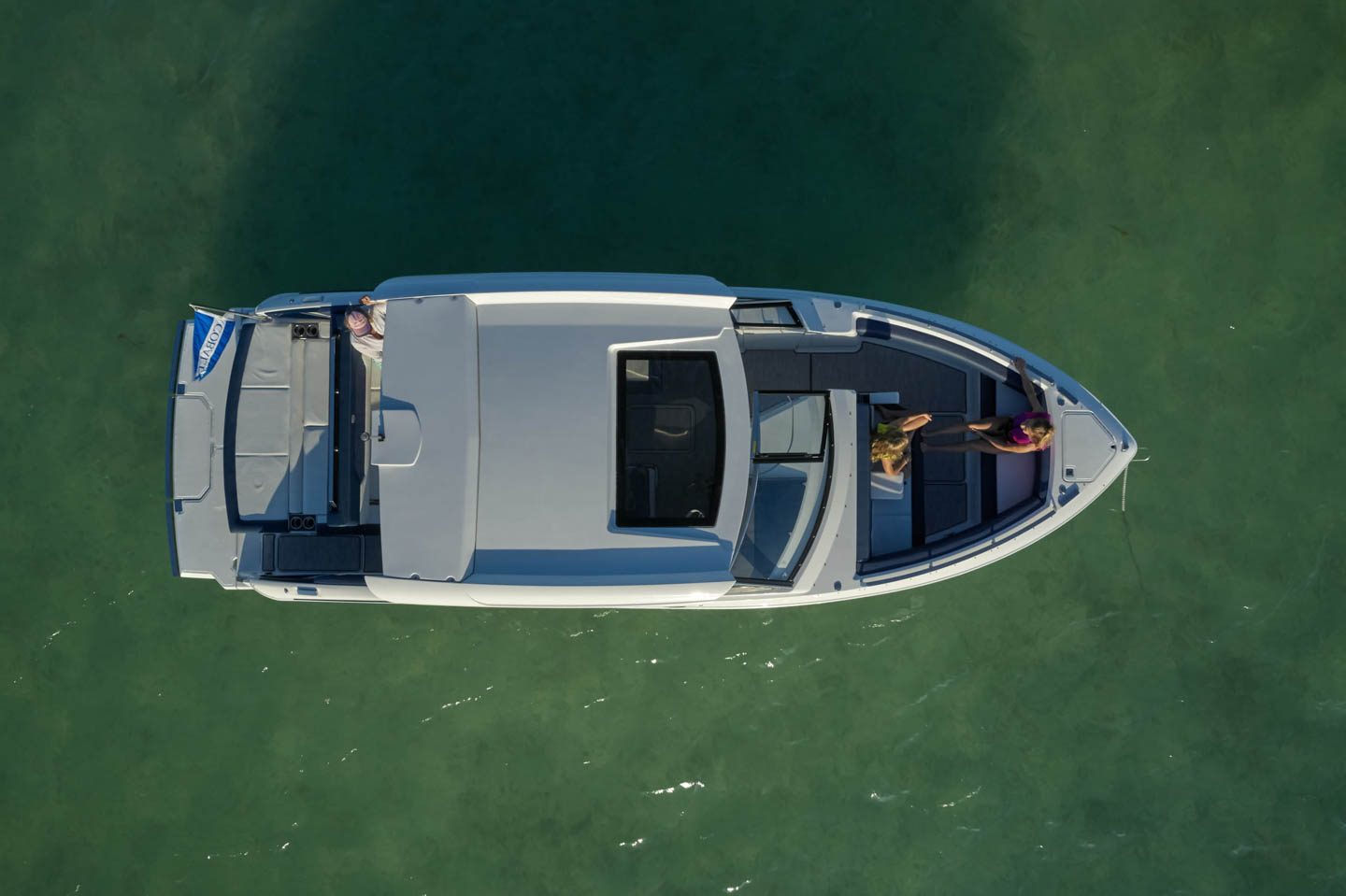

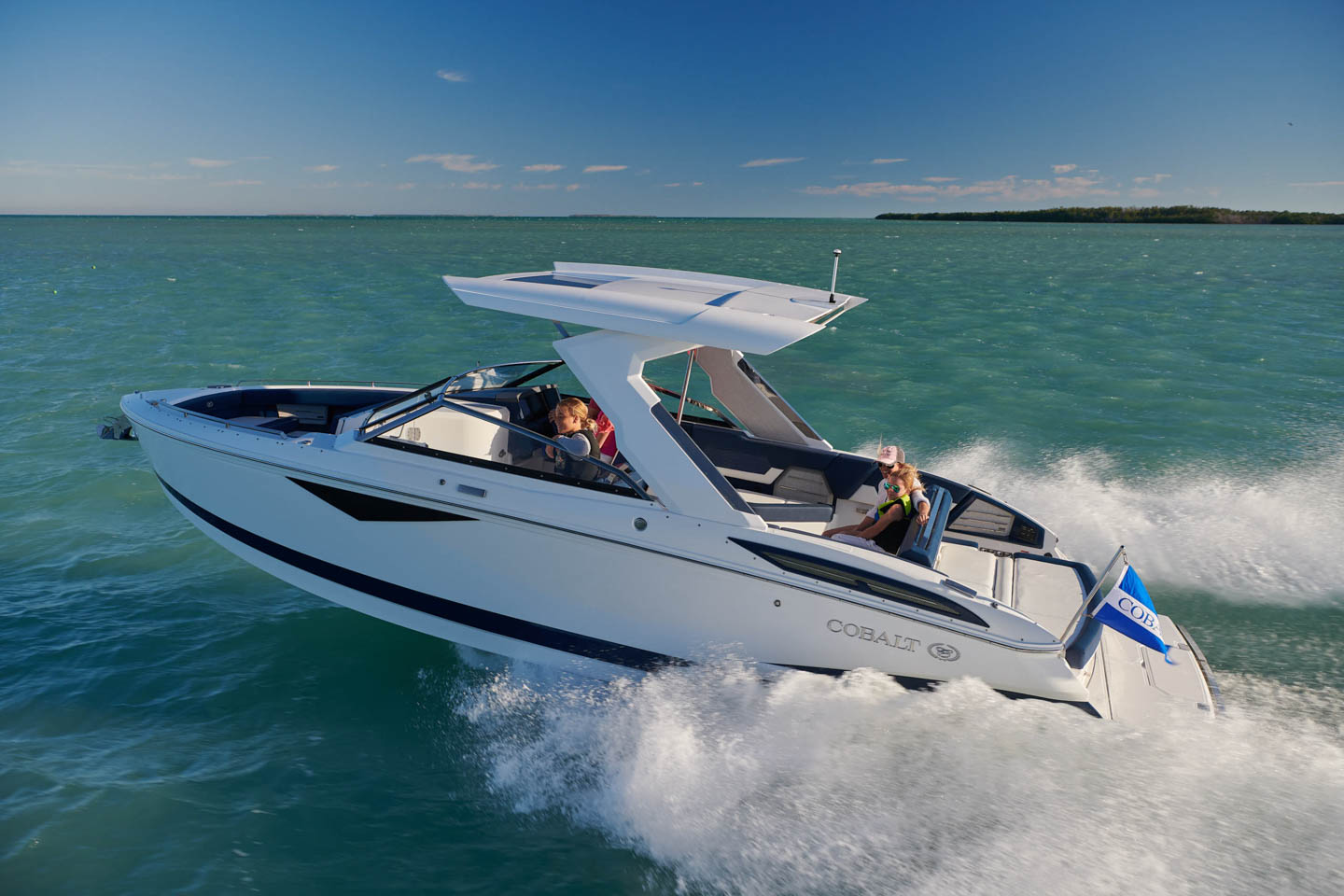

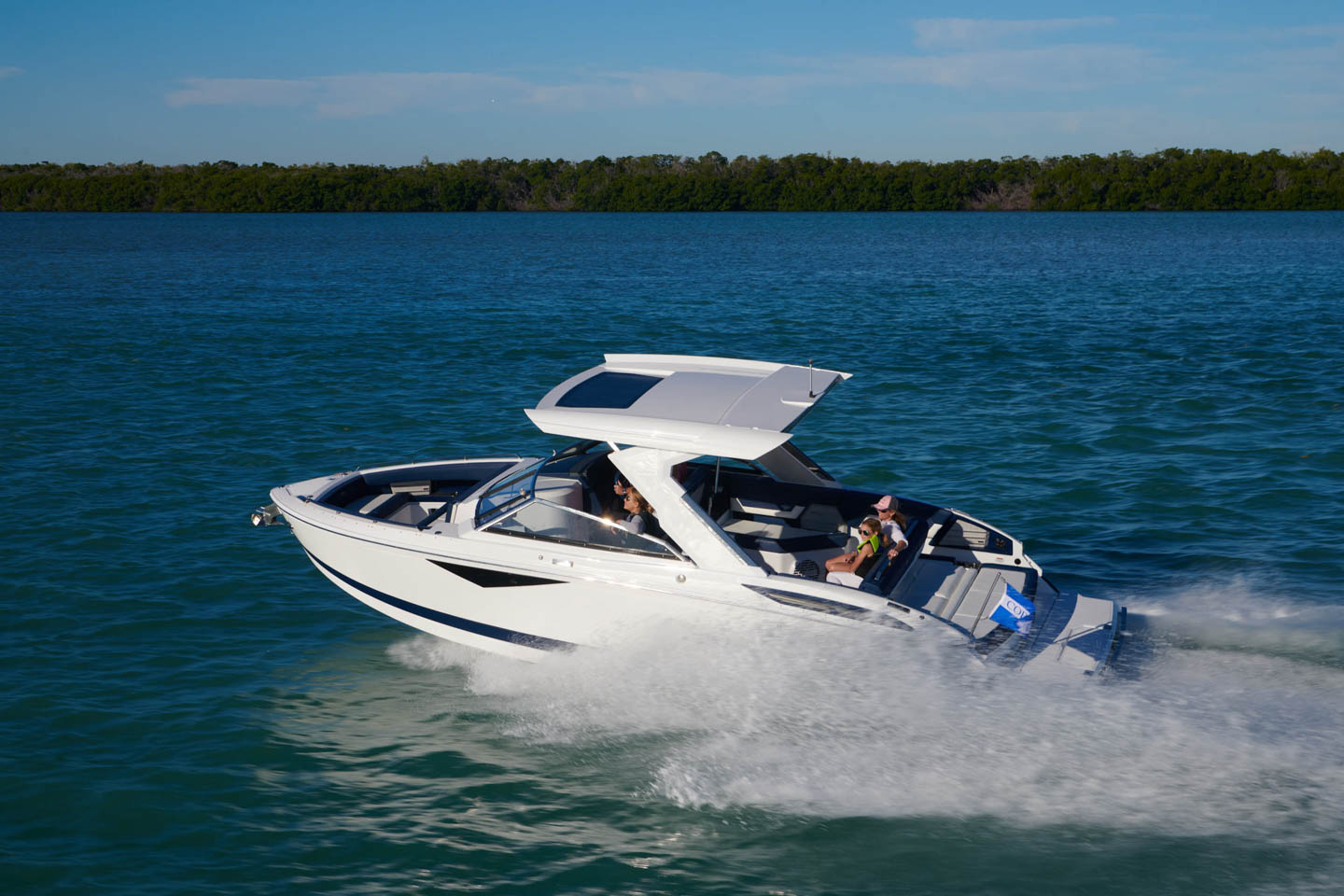

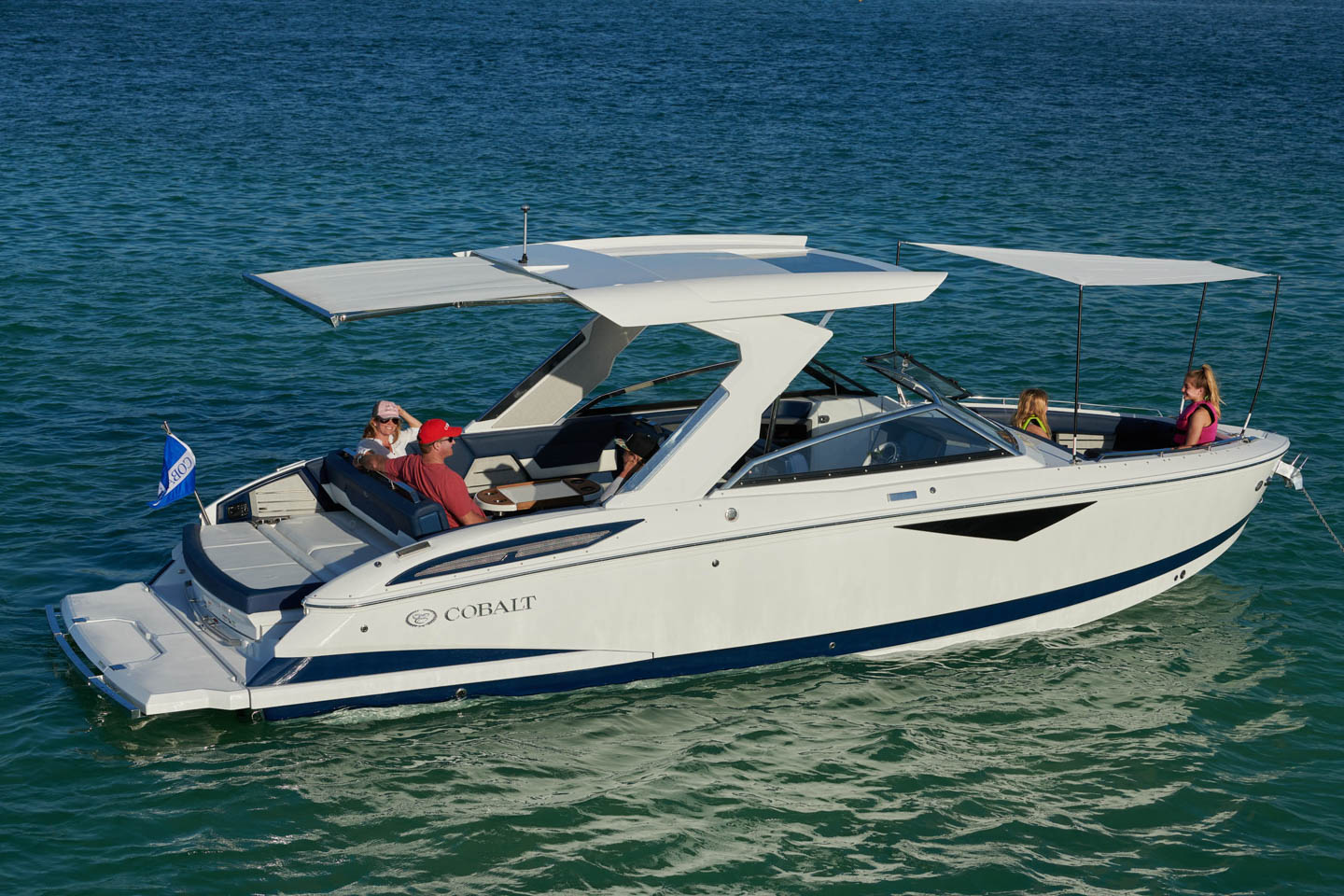

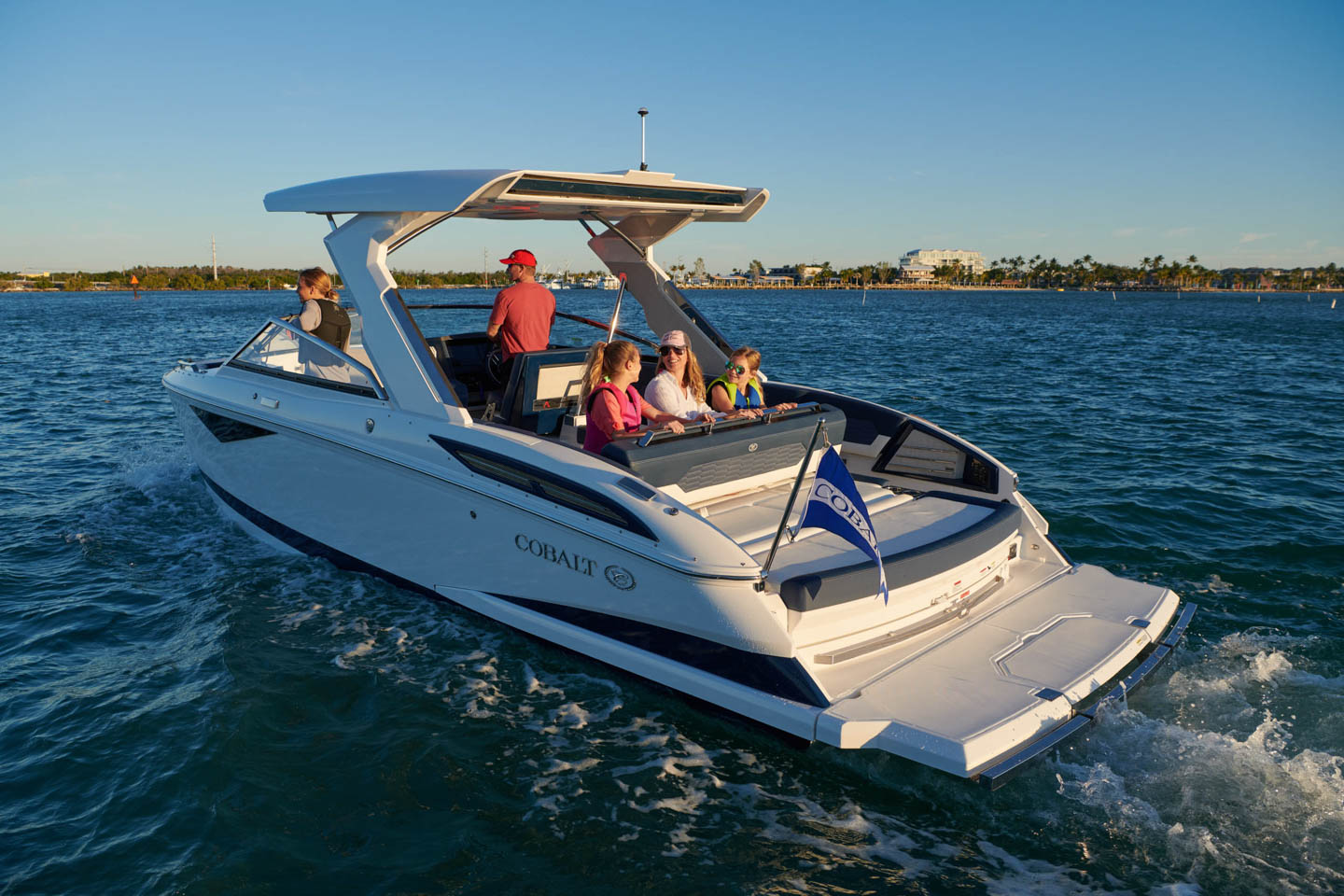

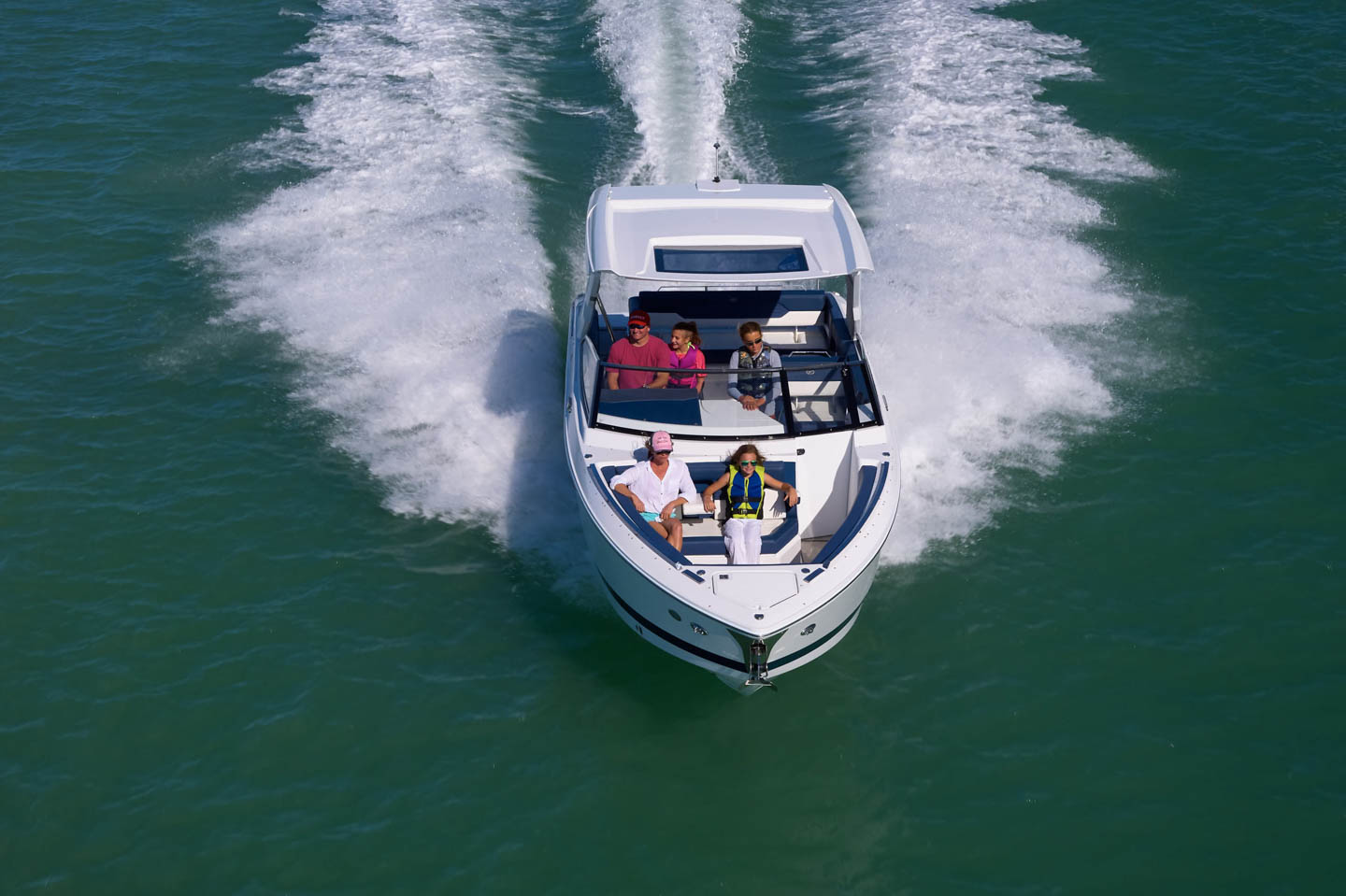

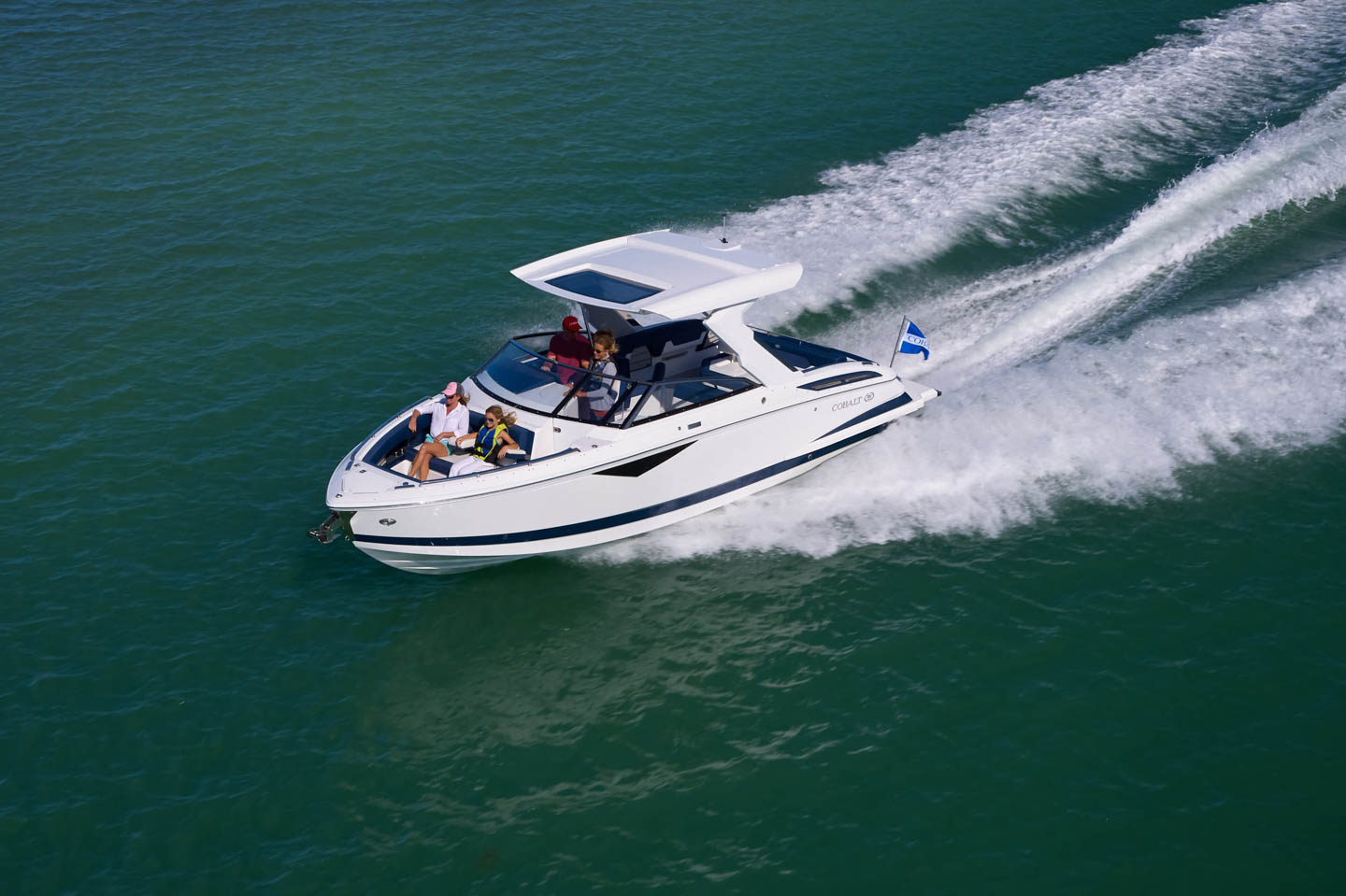

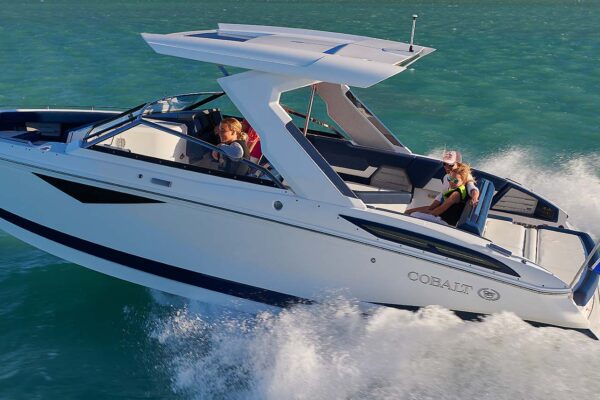

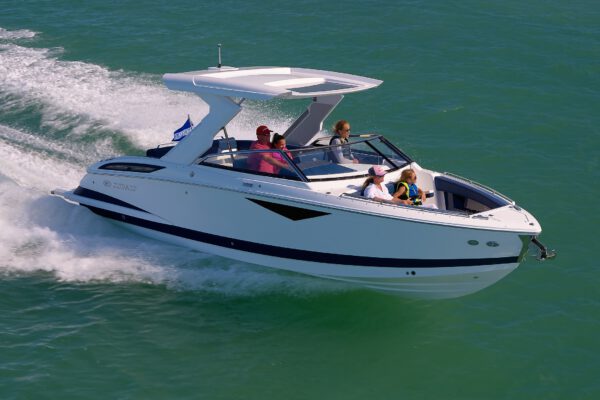

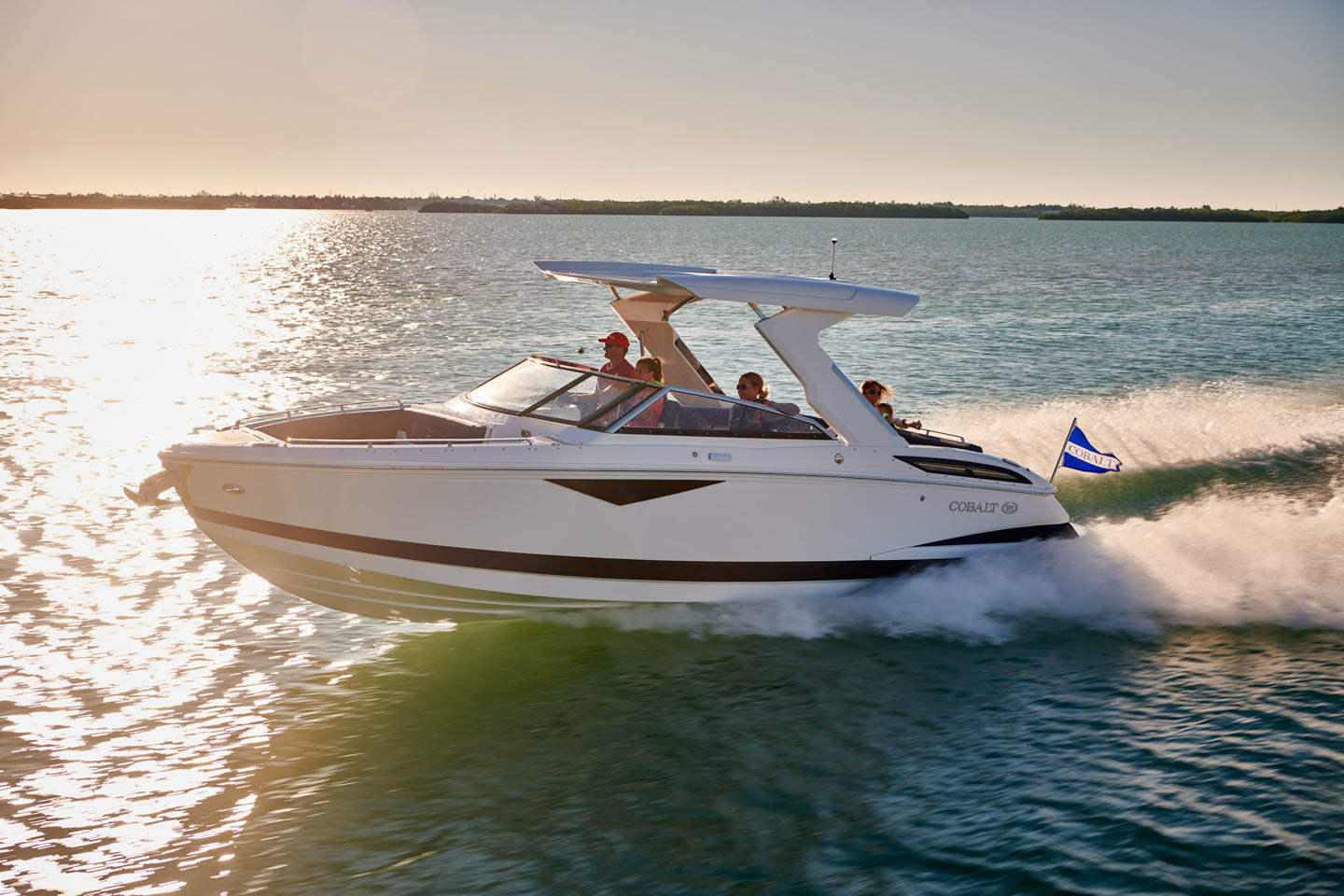

A29 Exterior

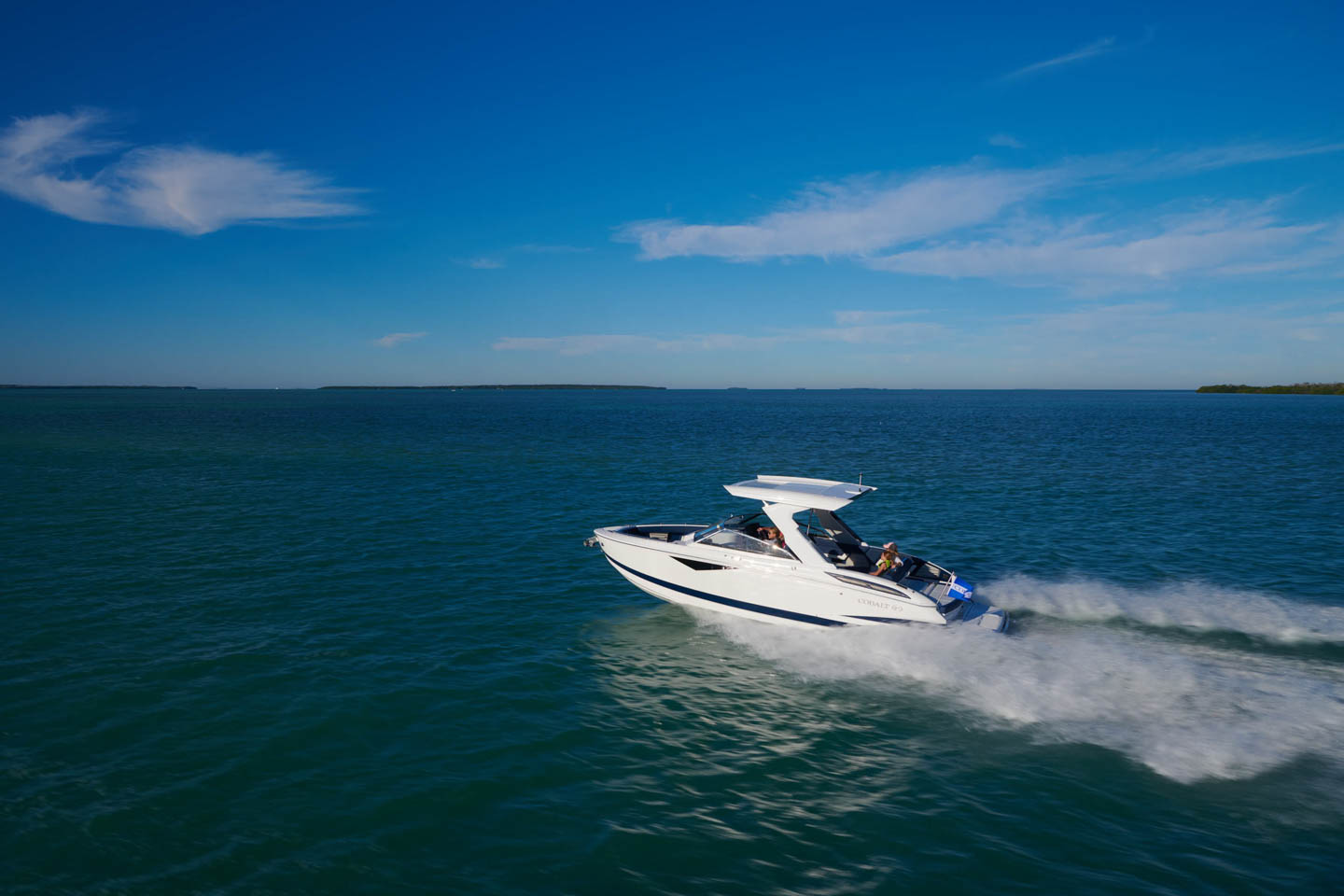

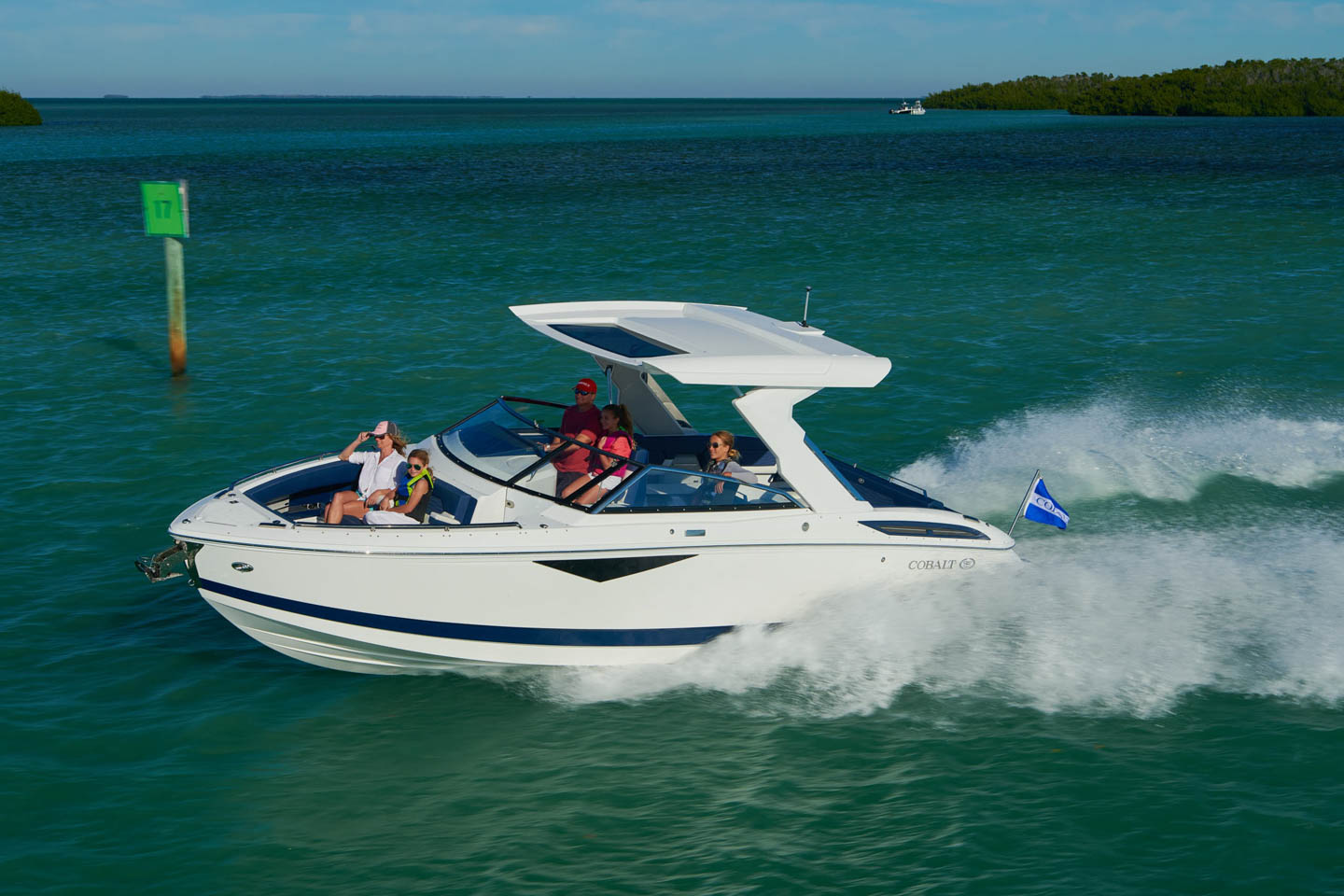

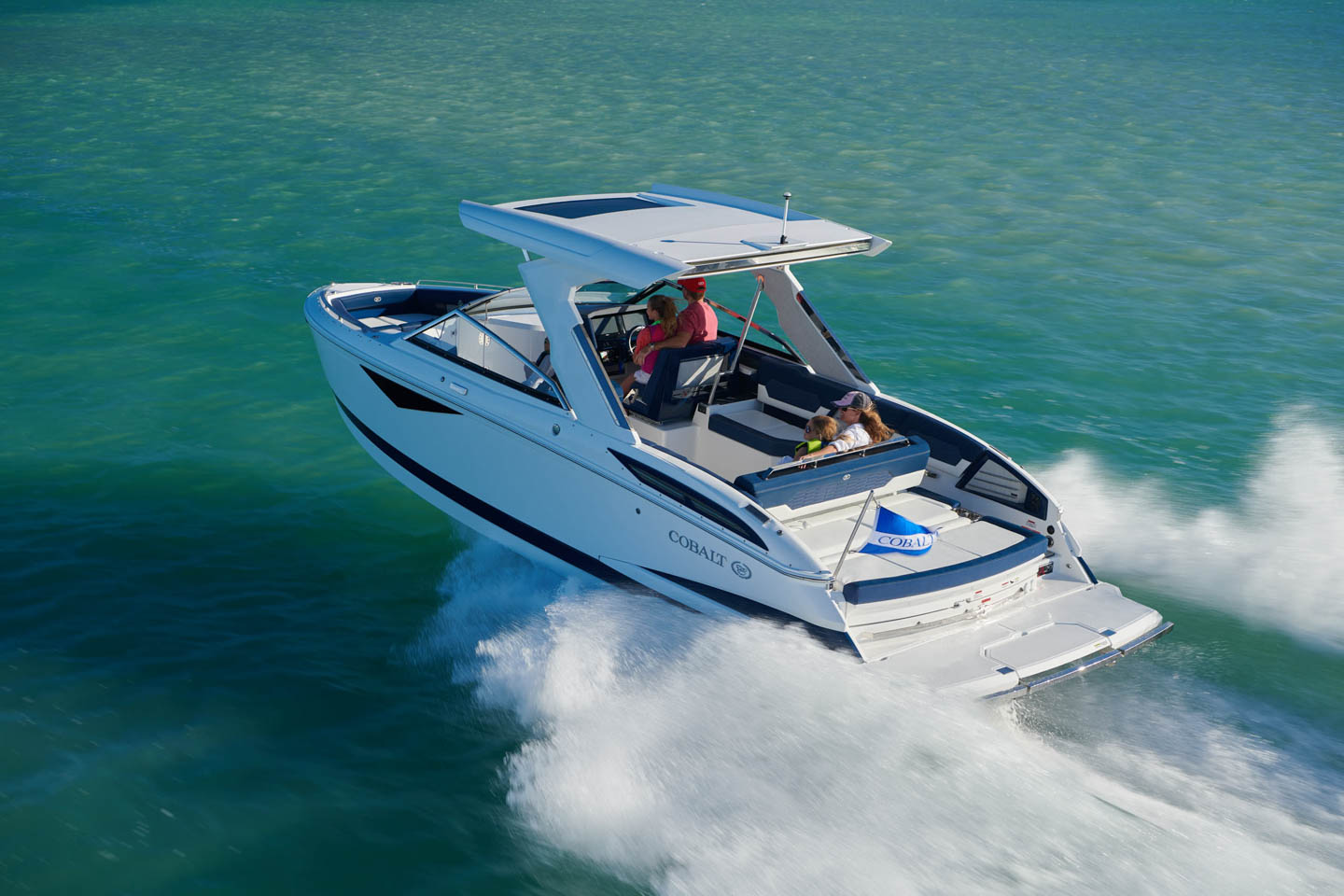

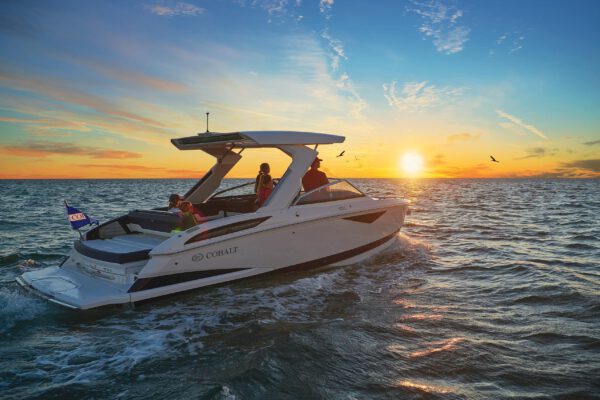

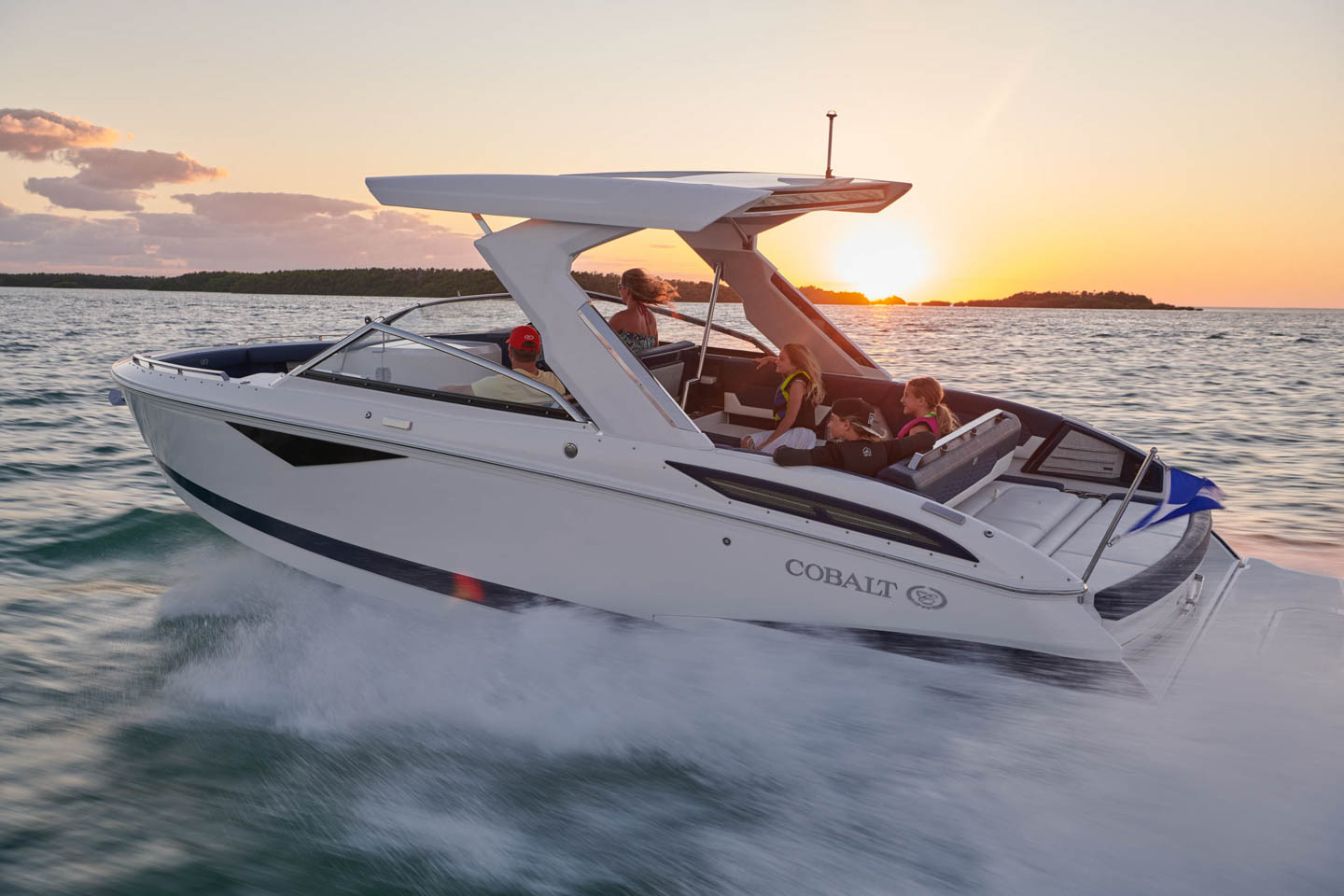

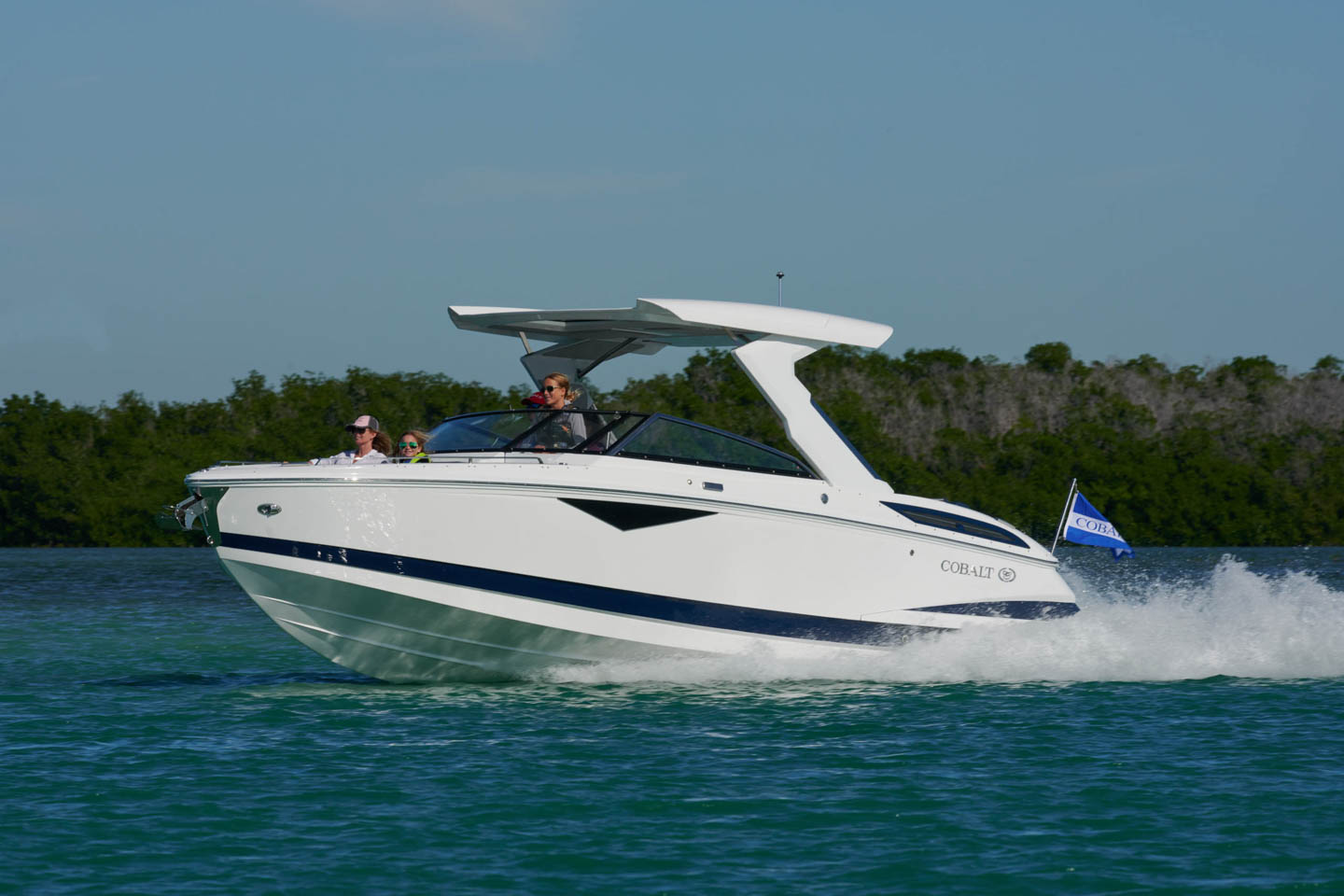

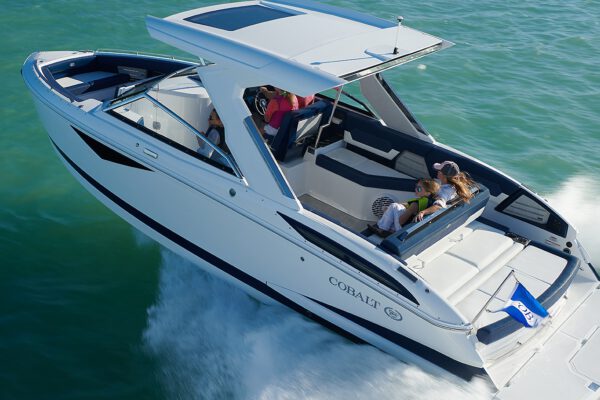

The Cobalt A29 features a modern exterior design with a deep-V hull for a smooth, stable ride. Built with premium materials, it delivers confident handling, spacious comfort, and refined styling on the water.

Exterior Features

Swim Platform Walk-thru Splash & Stow™® Cobalt + Garmin Monsoon Engines

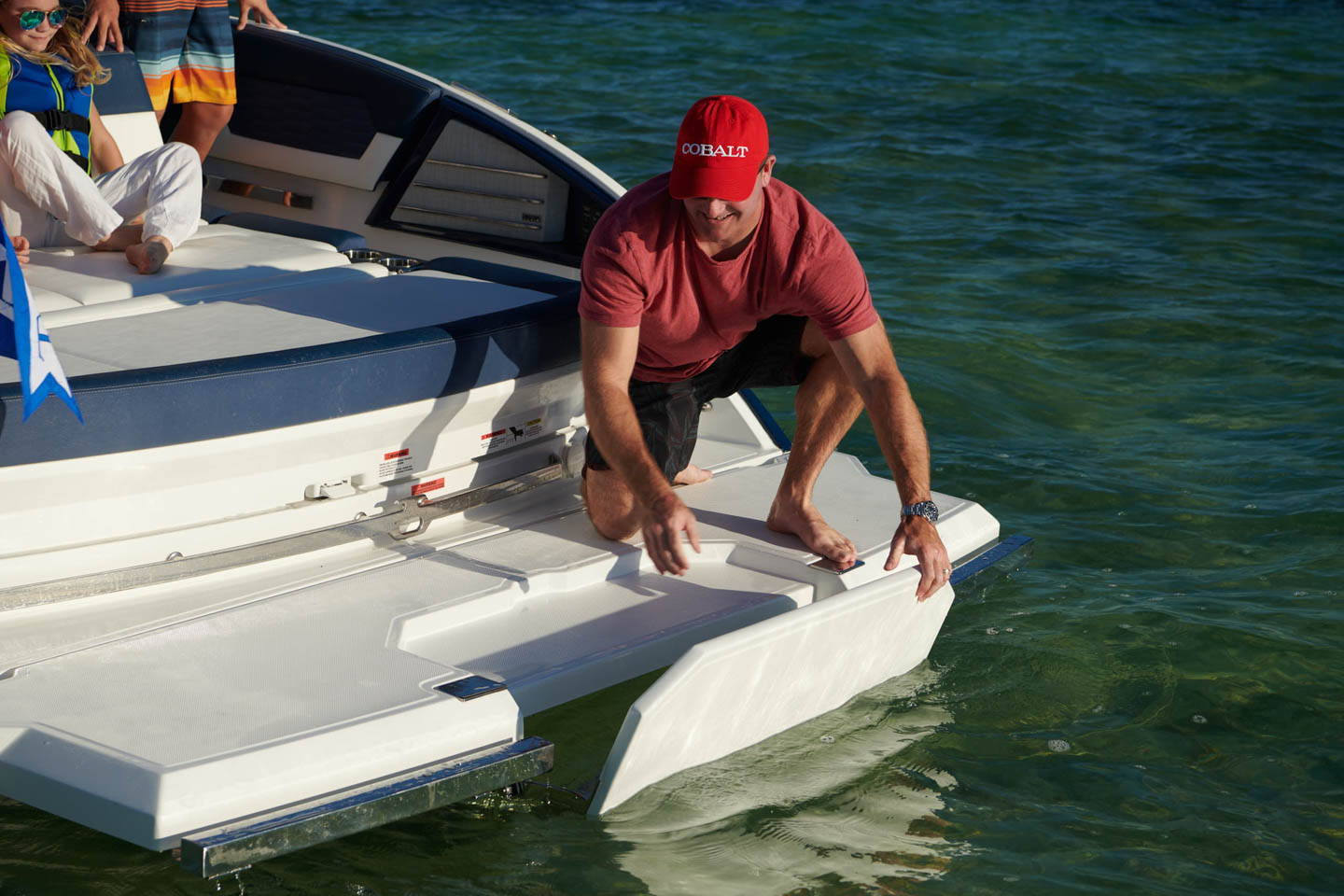

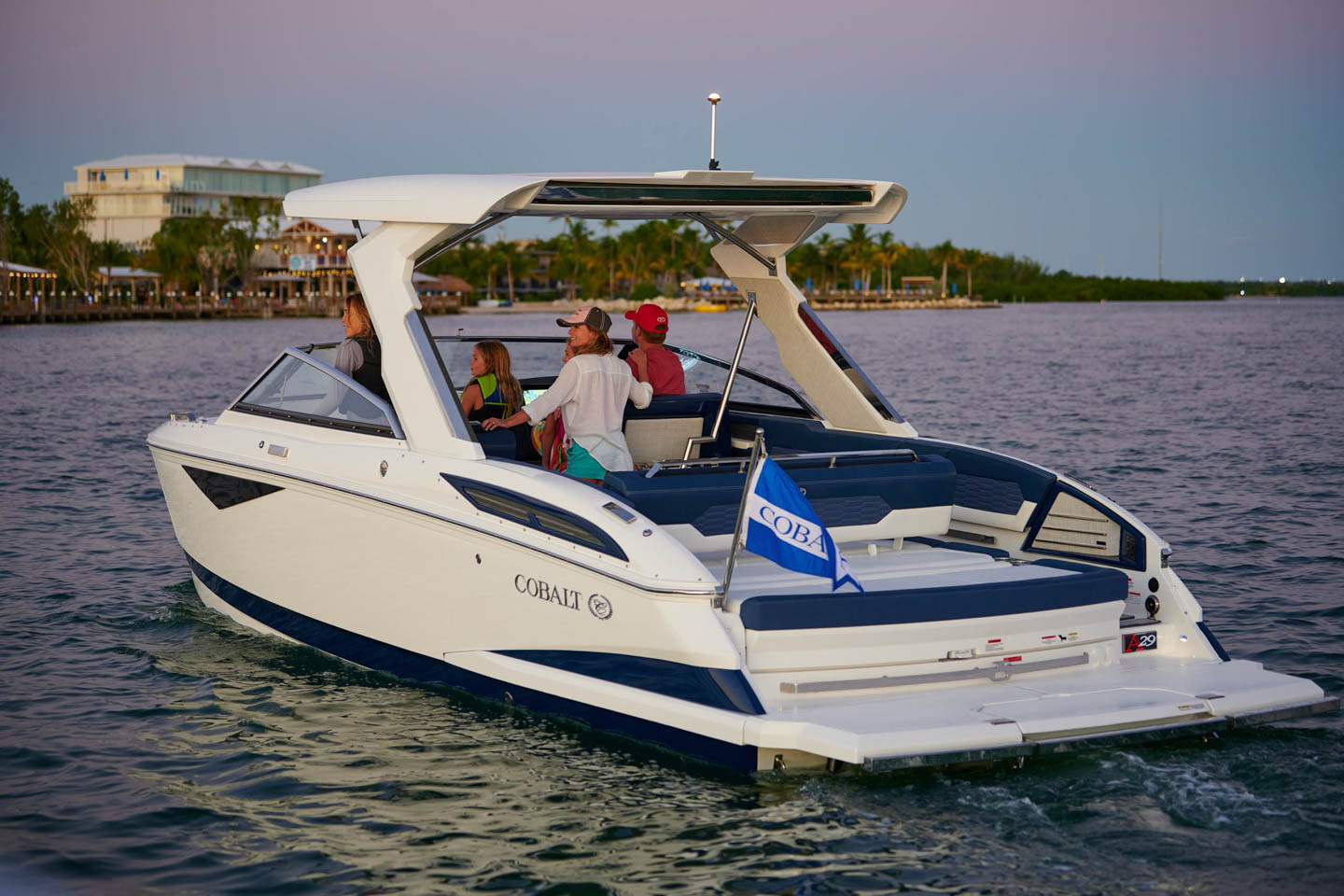

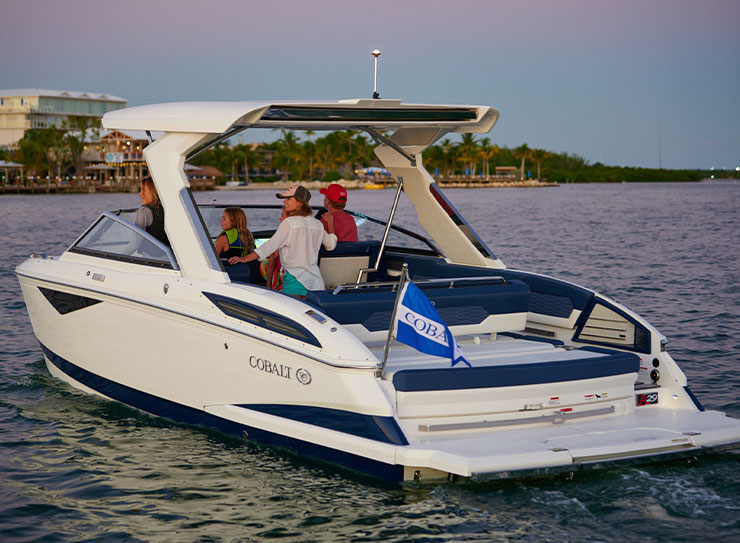

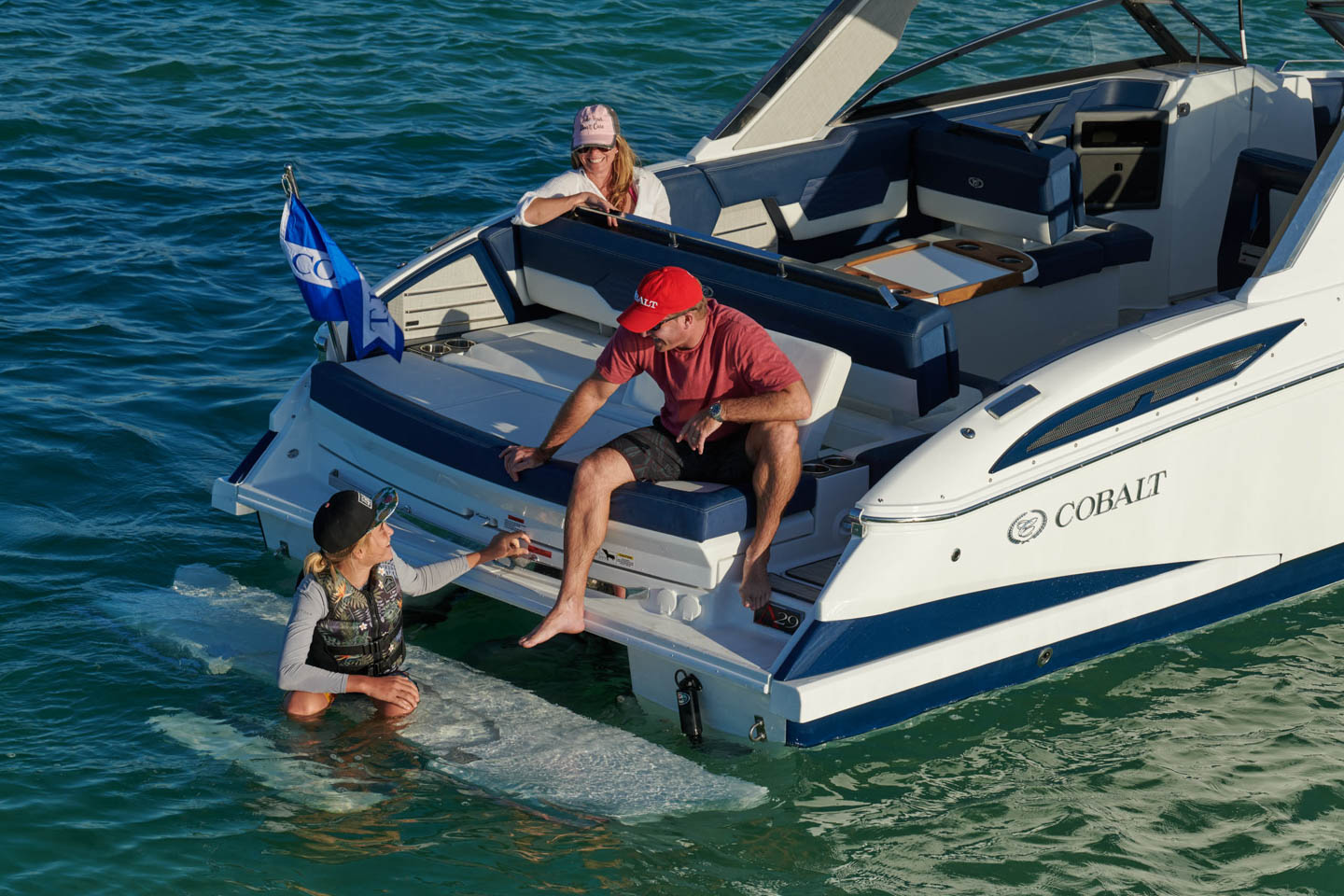

Hydraulic Swim Platform

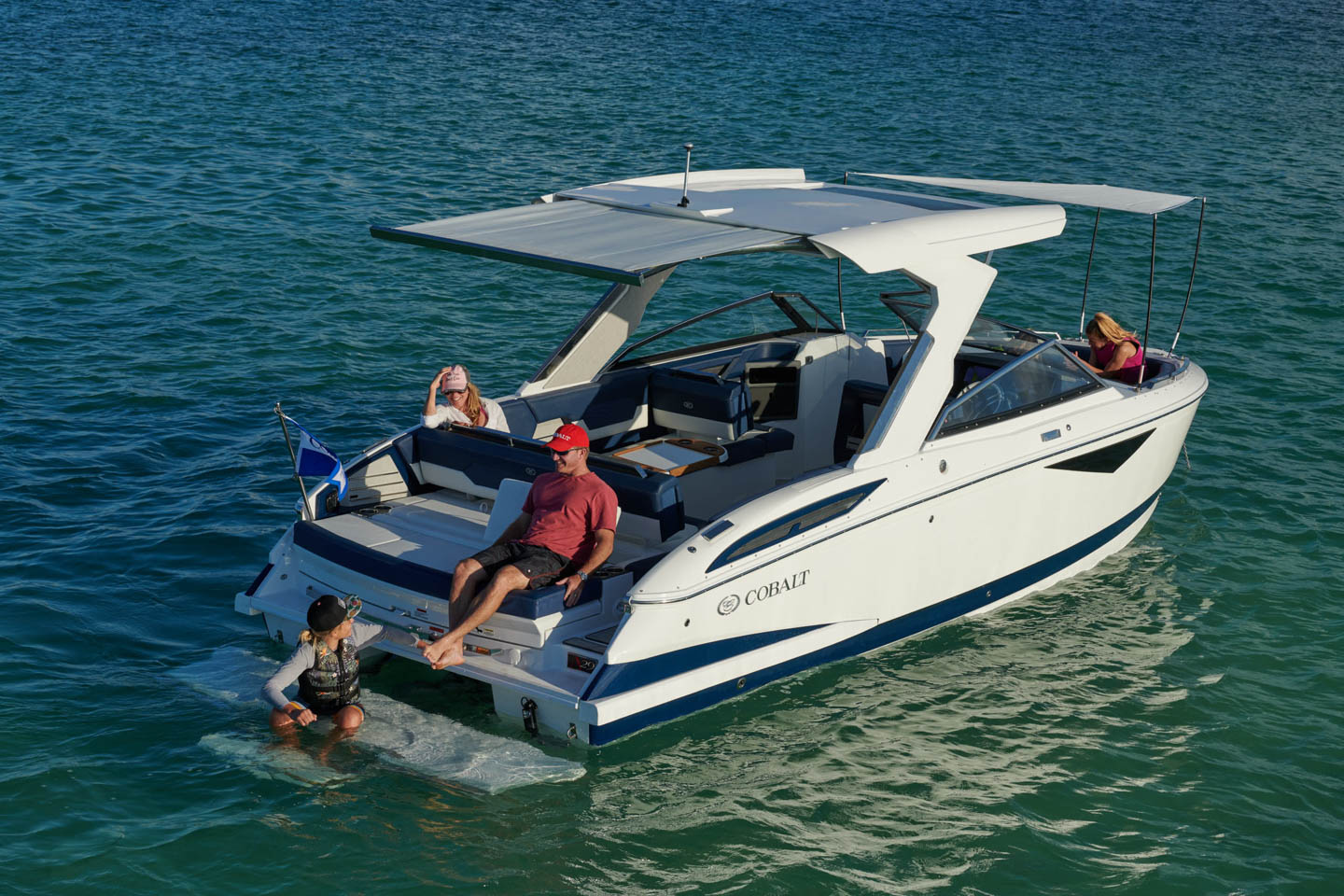

A full-width hydraulic swim platform lowers below the waterline for easy boarding, water access, and in-water lounging.

Port-side Forward Walk-thru

A port-side walk-through improves cockpit flow and provides easy access to forward bow seating.

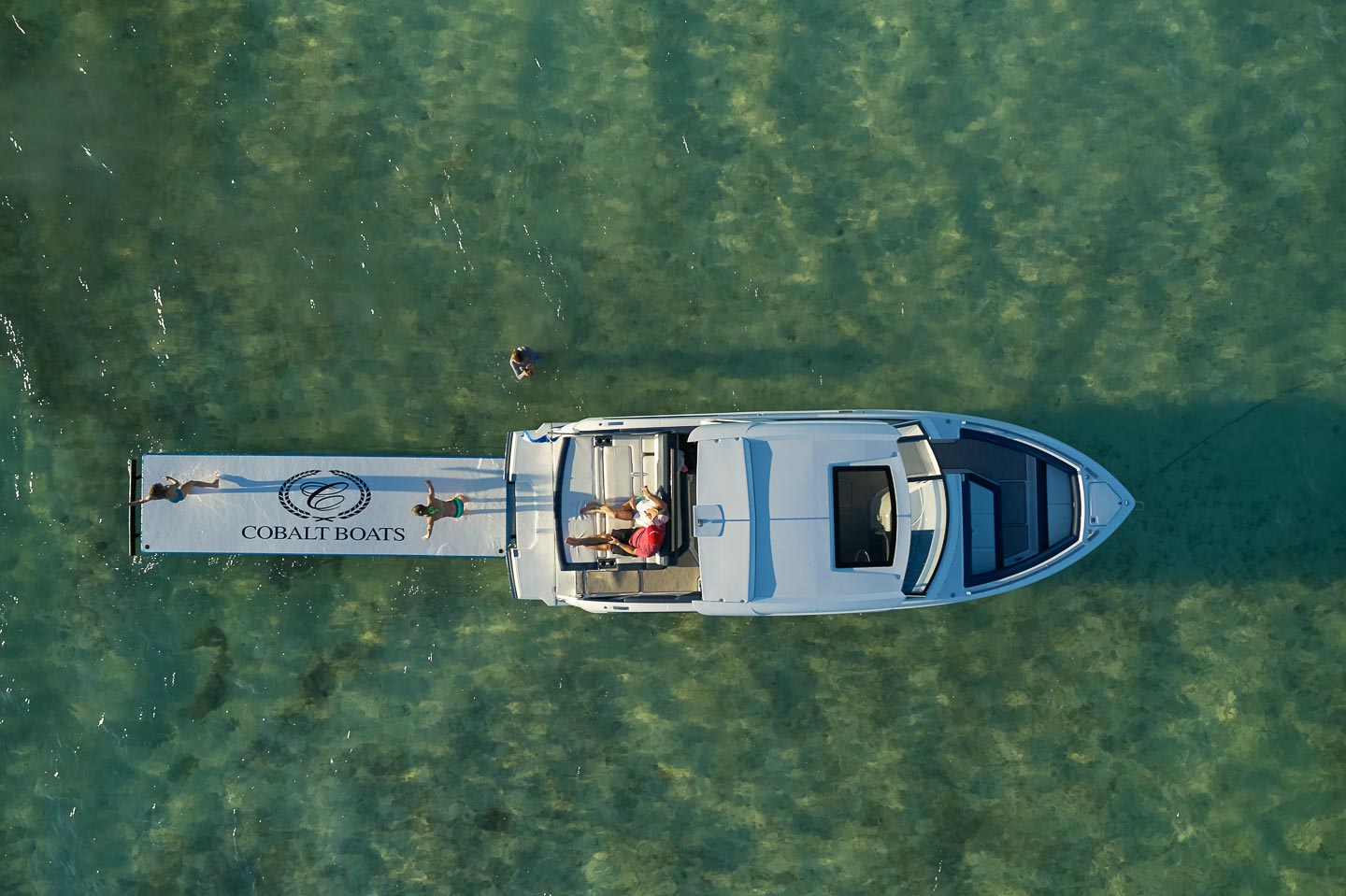

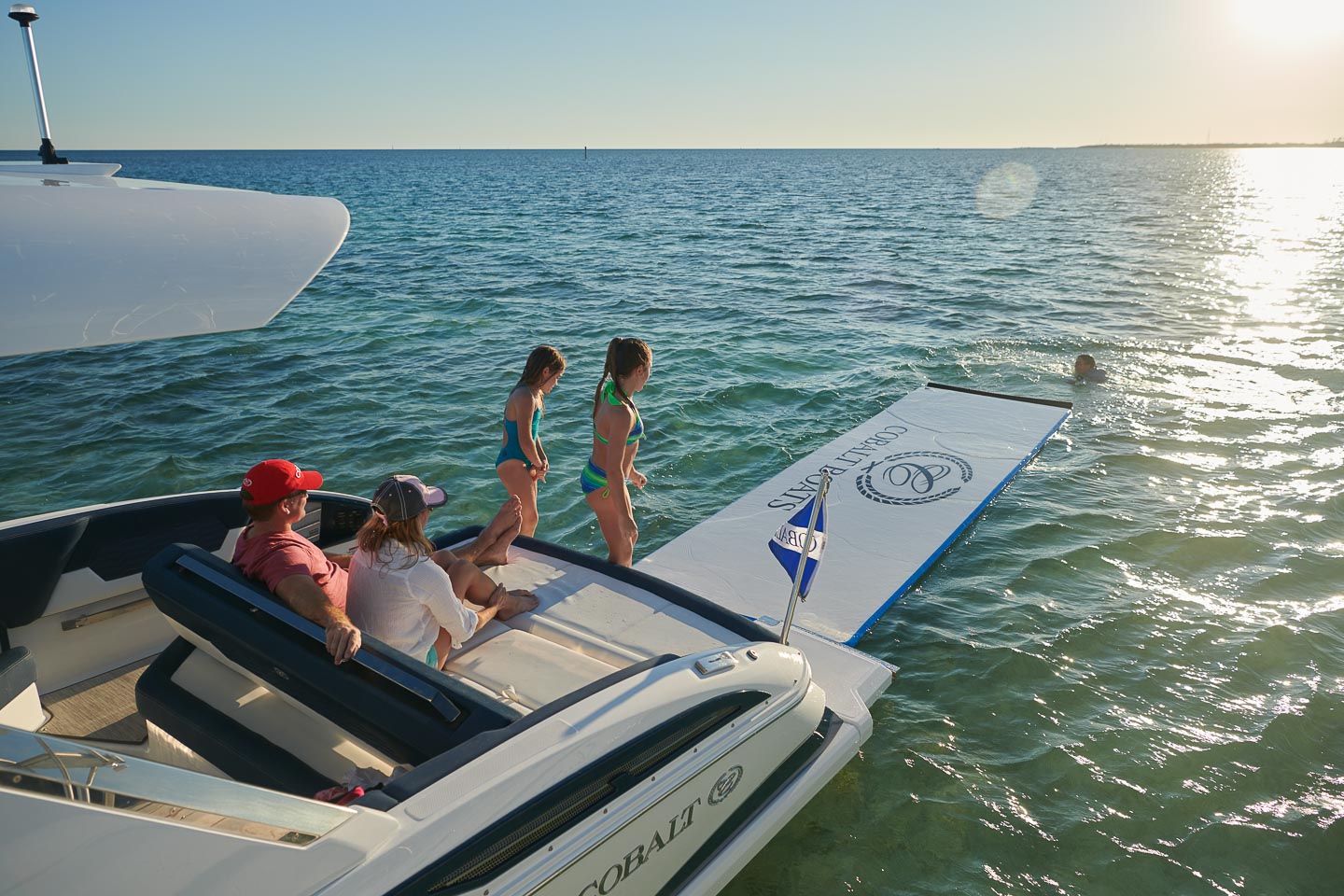

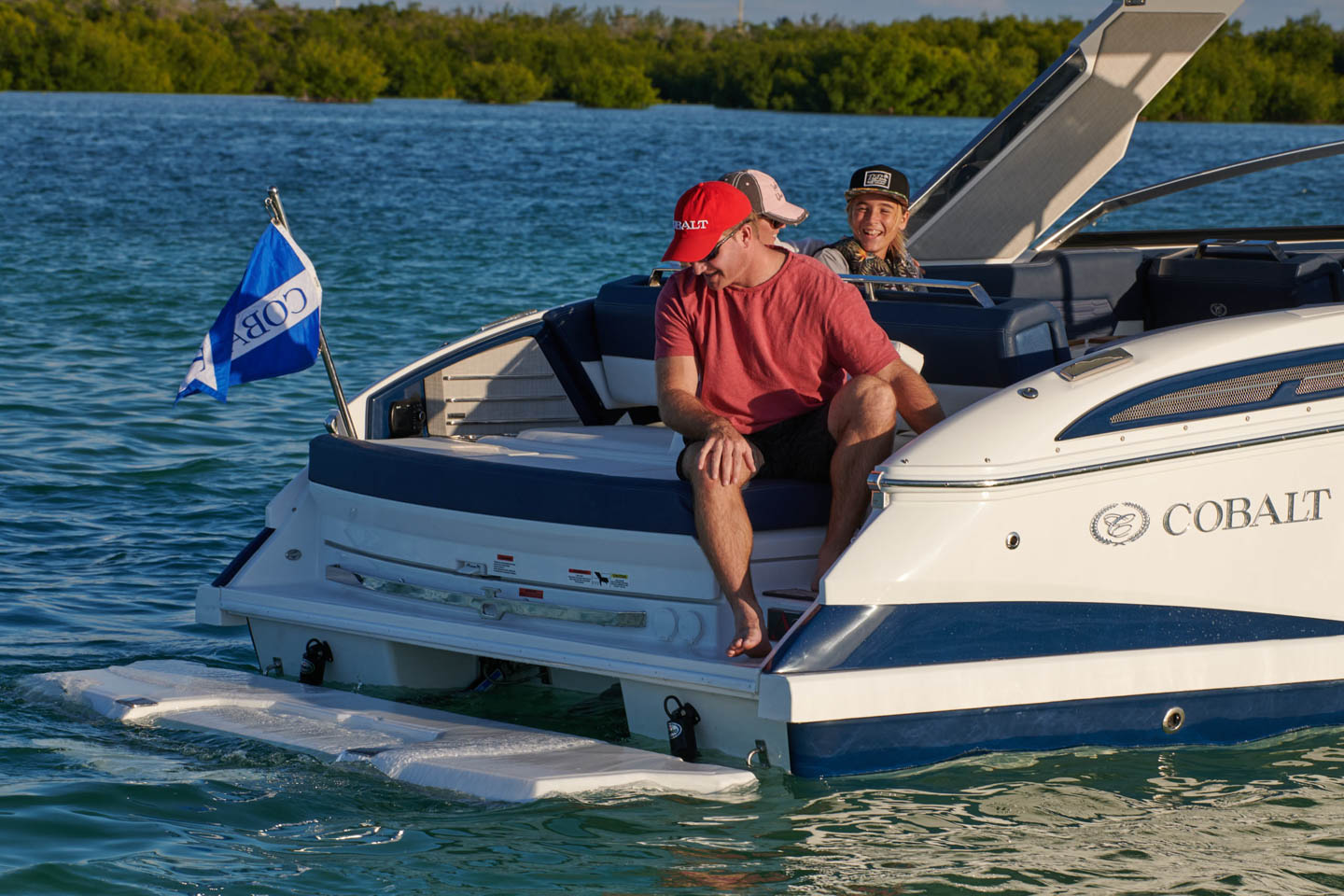

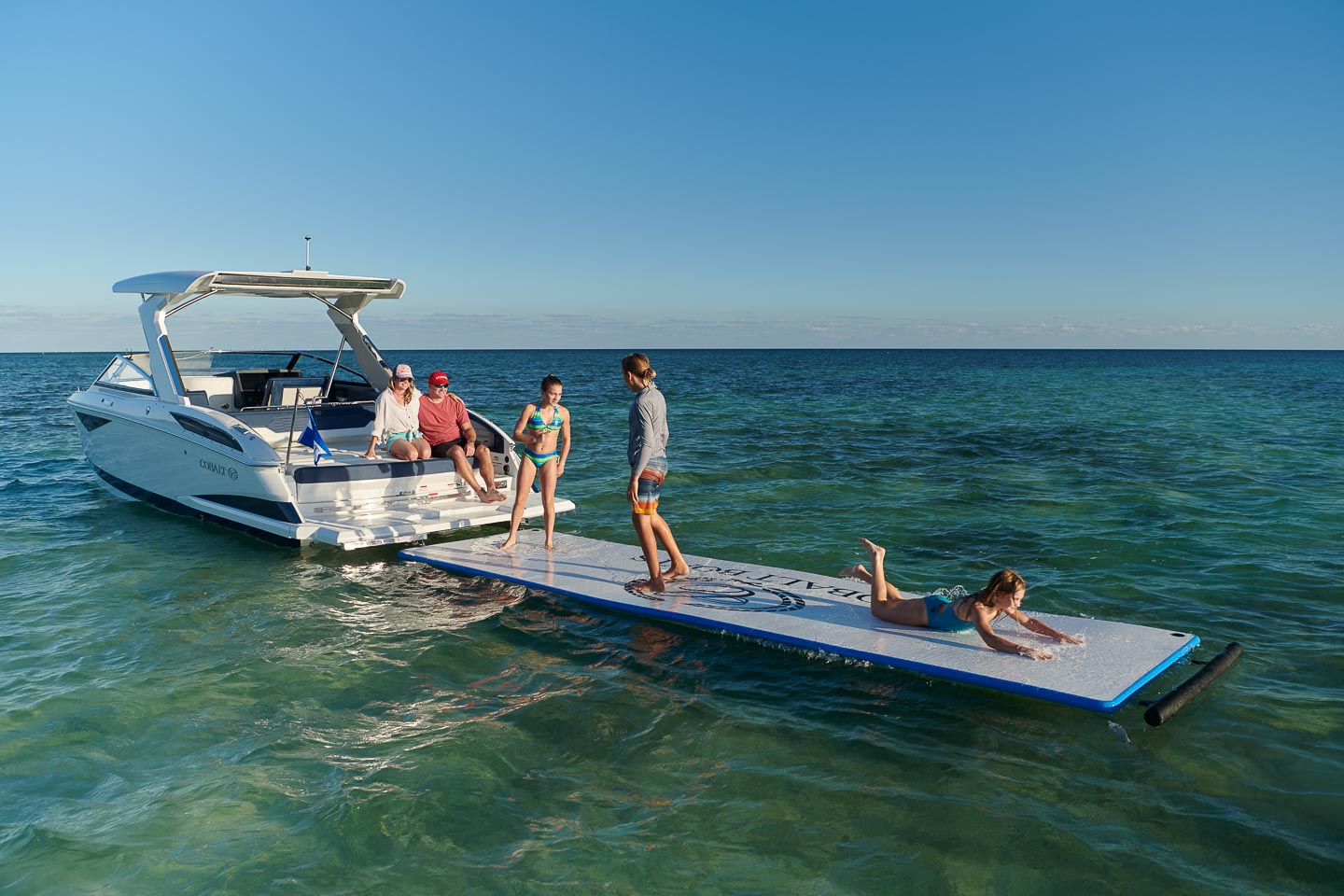

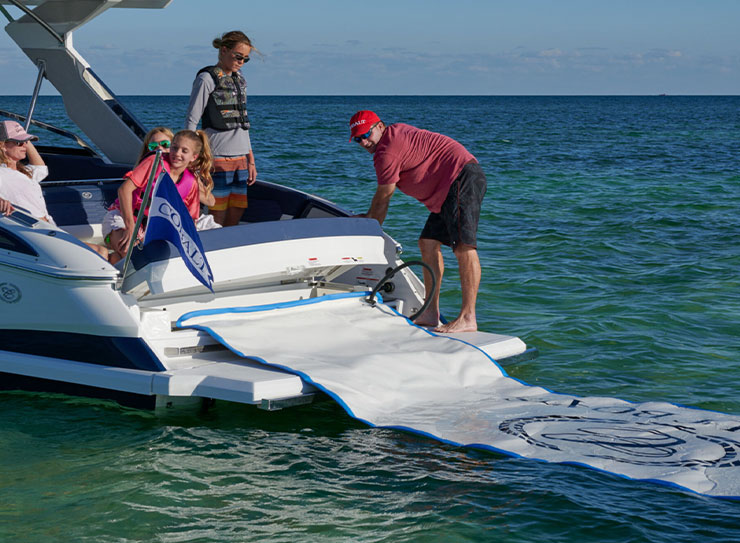

Splash & Stow™®

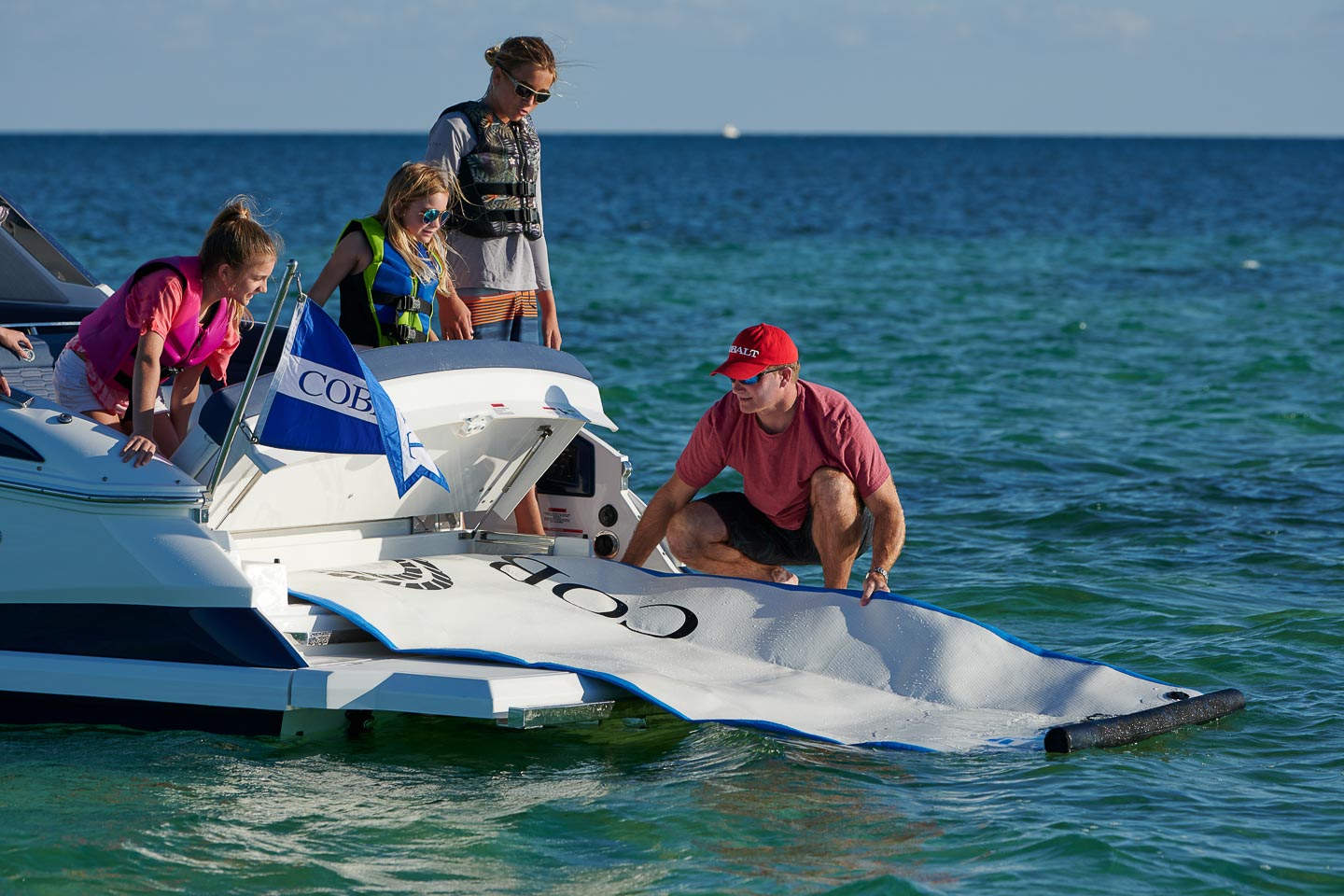

An integrated storage system for inflatables, allowing easy deployment and concealed storage with the push of a button.

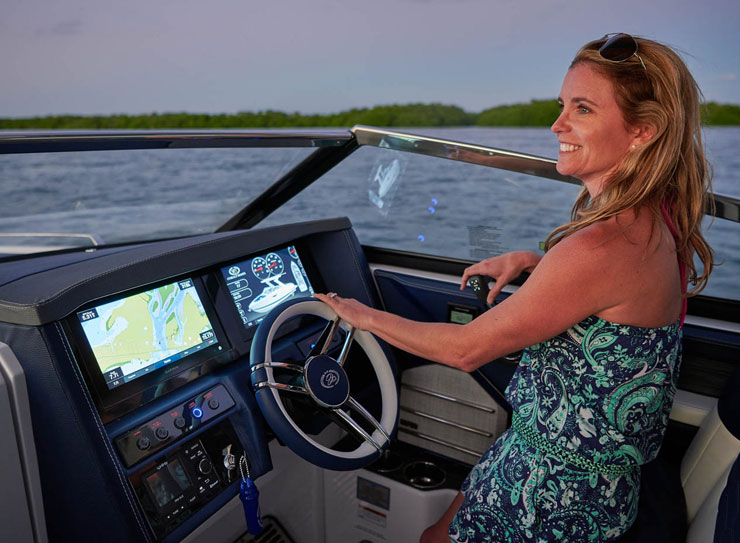

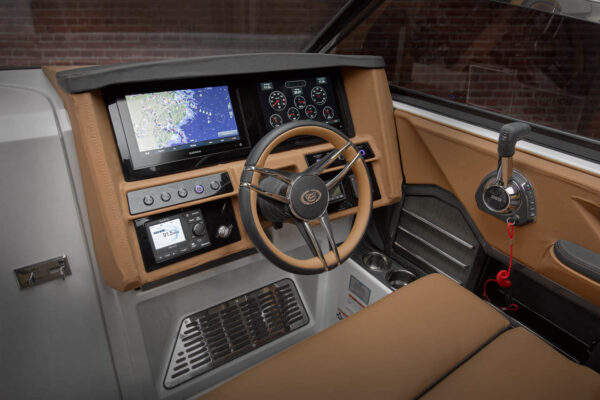

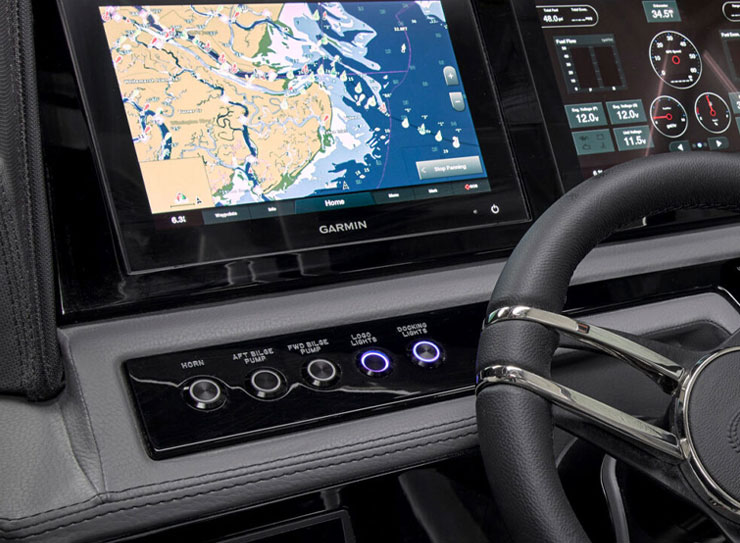

Cobalt + Garmin

A high-resolution glass cockpit with integrated GPS navigation, real-time data, and intuitive touchscreen control. Designed to provide clear visibility, precise control, and confident operation at the helm.

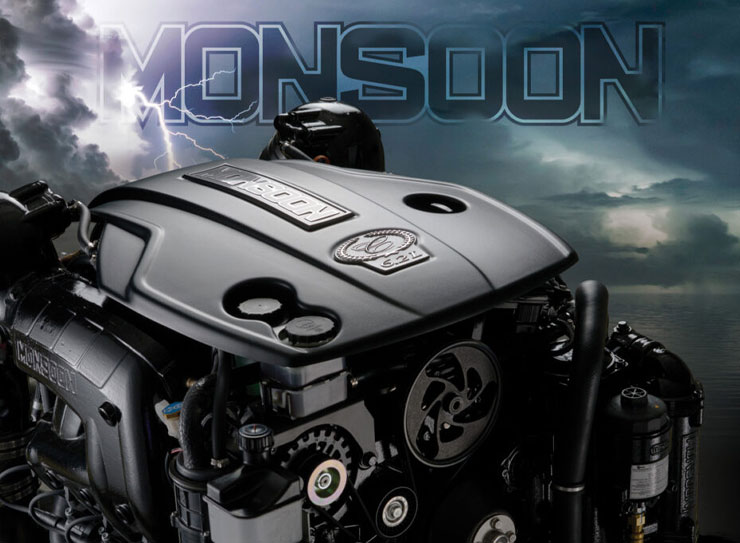

Monsoon Engines

High-performance marine engines with advanced direct injection, delivering smooth power, improved fuel efficiency, and reliable operation. Engineered for consistent performance and long-term durability on the water.

Specifications

Overview

LOA

29' 0"

Beam

9' 0"

Fuel

121 gal

Capacity

yacht certified

Head

yes

View All Specs

A29 Specifications

LOA

29' 0"

Beam

9' 0"

Fuel

121 gal

Capacity

yacht certified

Head

yes

A29 Standard Features

Specifications

Length Overall w/Swim Platform: 29' 0'' / 8.84 m
Beam: 9' 0'' / 2.74 m
Interior Cockpit Width: 94'' / 2.39 m
Deadrise at Transom: 21 degrees / 21 degrees
Fuel Capacity: 121 gal. / 458 L
Freshwater Capacity: 18 gal. / 68 L
Bridge Clearance w/o Bimini: 60'' / 1.52m
Bridge Clearance w/Arch: 94'' / 2.40 m
Bridge Clearance w/Hard Top: 105'' / 2.67 m
Draft Drive Up: 28'' / .71 m
Draft Drive Down: 38'' / .97 m
Dry Weight (varies with options): 7,275 lbs. / 3,300 kg
Boat Certified Capacity: Yacht Certified
Boat Certified Capacity w/gear: Yacht Certified

Power Selection – Volvo Penta

V8-380CE DP - 380 hp (283 PkW)
V8-430CE DP - 430 hp (321 PkW)

Power Selection – MerCruiser

8.2 Mag ECT B3X DTS - 380 hp (283 PkW)
8.2 Mag HO ECT B3X DTS - 430 hp (321 PkW)

Power Selection – Monsoon

6.2 250A B3X - 430 hp (321 PkW)

Dash & Instrumentation

Accessory Power Plugs/USB - 12 Volt
Composite Helm Eyebrow, Custom Stitching
Depth & Water Temp Gauge Pkg.
Glass Cockpit, Dual Garmin 8610
Hour Meter(s)
Stainless Steel Switches

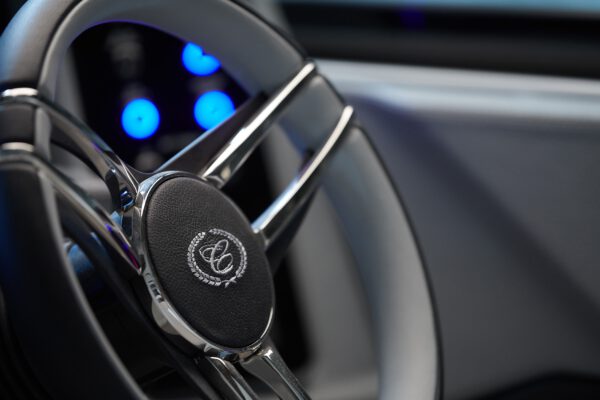

Steering Wheel, Leather Color-Matched

Entertainment

Custom Acoustic Speaker Covers
iPod/USB/MP3 Port - Detail
Sound System, Bluetooth, w/6 Spkrs.
Speaker Covers, Arch (Platinum Sound) - Detail
Stereo Remote, Dash
Stereo Remote, Transom (Prem. Sound)

Interior

Aft Sunpad w/Walk-Thru Transom
Bench Seat Storage
Bow Walk-Thru Door
Cockpit Seat, Stbd.
Dual Sundeck Convertible Lounger

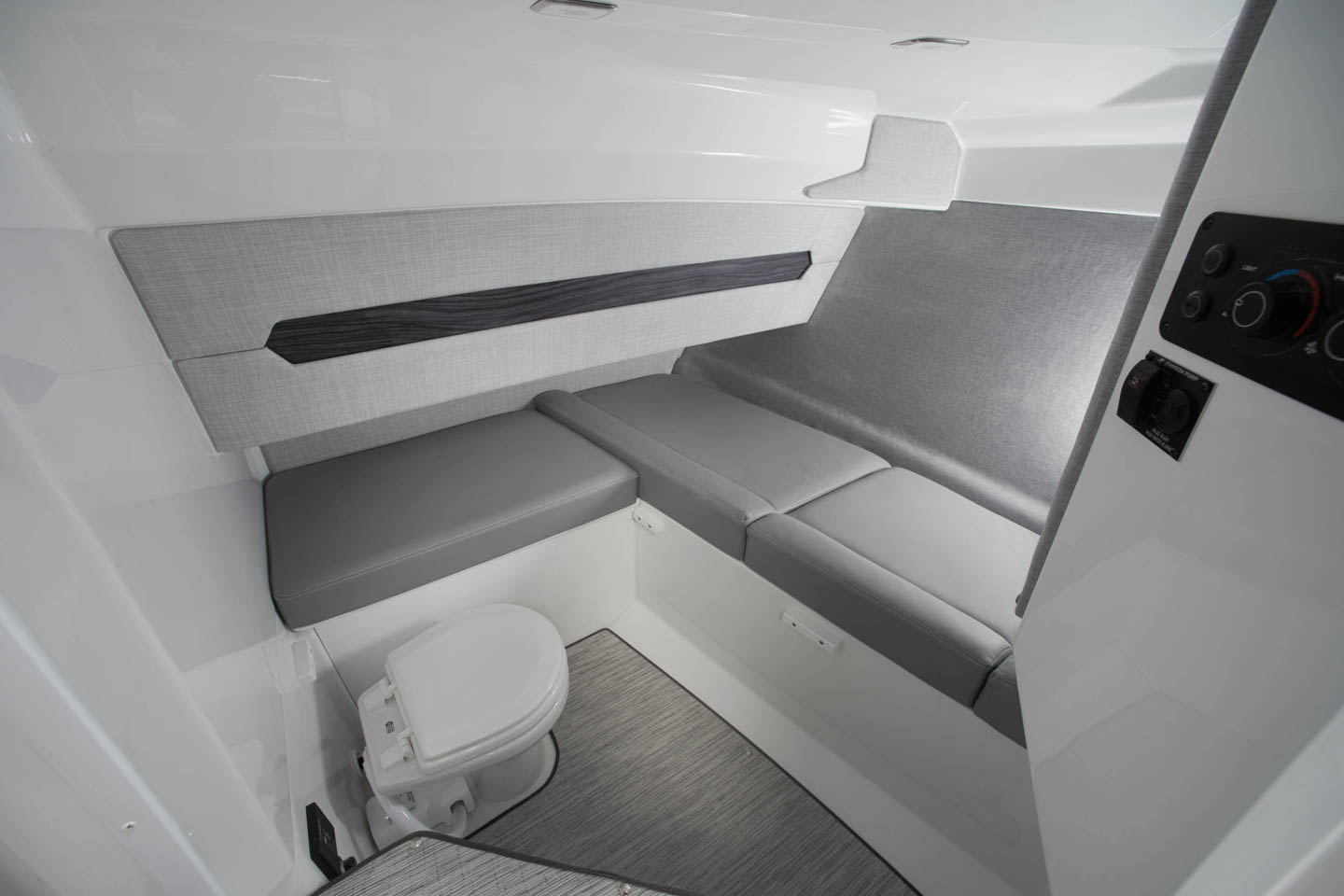

Head w/Porta Potti
Helm Seat, Double-Wide
Ice Chest, portable 48 qt
Motorbox Sunpad w/Adj. Backrest
Passenger Seat Flip Backrest System
Ski Storage w/Protective Liner
Trash Receptacle, 28 gal

Exterior

Anchor Locker
Bow Scuff Plate, Stainless Steel - Detail
COBALT Lettering, Chrome Backlit
Extended Running Surface
Fender Clips w/Line (4) - Detail
Graphics, Molded-In Gelcoat
Midship Cleats
Motorbox Actuator
Ski Pylon - Stainless Steel
Stainless Top Trim Windshield
Swim Platform, Extended w/Swim Step
Transhield Shipping Cover
Transom Lighted Model Designator

Structural & Safety

10/5/3 Year Warranty Protection
Battery Switch, Dual w/ACR
Circuit Breaker Protected Elec System - Detail
Composite Floor
Composite Transom
Fiberglass Cockpit Liner
Fiberglass Stringer System
Fire Extinguisher, Automatic System - Detail
Fire Extinguisher(s), Manual
Ignition Safety Switch - Detail
Kevlar Reinforced Hull
Stainless Steel Windshield Braces - Detail
Through Prop Exhaust

A29 Optional Features

Power Selection – Engine Enhancements (Standard)

DTS (Merc)
EVC (Volvo)

Power Selection – Engine Enhancements (Optional)

Active Trim, Merc - Detail
Seacore (Merc) - Detail
TCC (Titanium Ceramic Coating)-Volvo - Detail
Tow Mode (Volvo EVC)
Seacore (Monsoon)

Dash & Instrumentation

Glass Cockpit, Dual Garmin 8612
Wireless Phone Charger - Detail

Entertainment

Plat Sound w/Transom & Arch Spkrs-2 pr. - Detail
Plat Sound w/Transom & Hardtop Spkrs. - Detail
Plat Sound w/Transom Spkrs. - Detail
Prem Sound w/Transom & Arch Spkrs-1 pr.
Prem Sound w/Transom & Hardtop Spkrs.
Prem Sound w/Transom Spkrs.
Satellite Radio System
Stereo Remote, Transom (Std. Sound)

Interior

Air Compressor w/Holder - Detail
Air Conditioning, 12v
Bow Center Cushion Insert - Detail
Bow Table (additional)
Day Cabin Cushion Insert - Detail
Dinette Table w/Teak Accent
Dinette Table, Solid Teak
Floor Covering, Sea Grass - Detail
Galley, Cockpit w/Sink & Refrigerator
Gray Water System
Head w/Electric Porcelain Toilet - Detail
Head w/Electric Porcelain, Macerator - Detail
Head w/Pump Out Porta Potti
Helm Seat, Electric
Interior Wood Trim Pkg. (w/galley)
Interior Wood Trim Pkg. (w/seat)
LED Interior Accent Lighting (RGB) - Detail

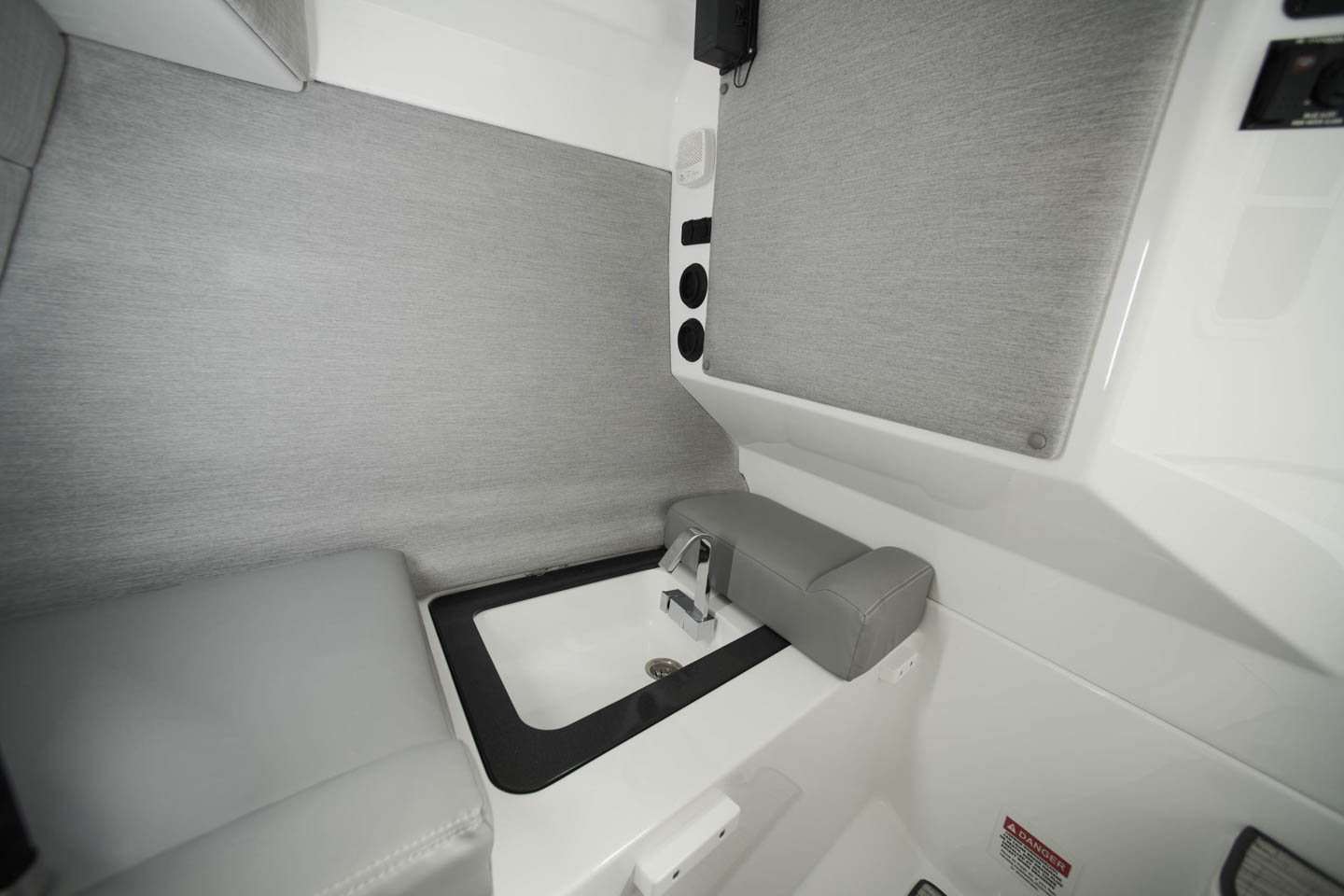

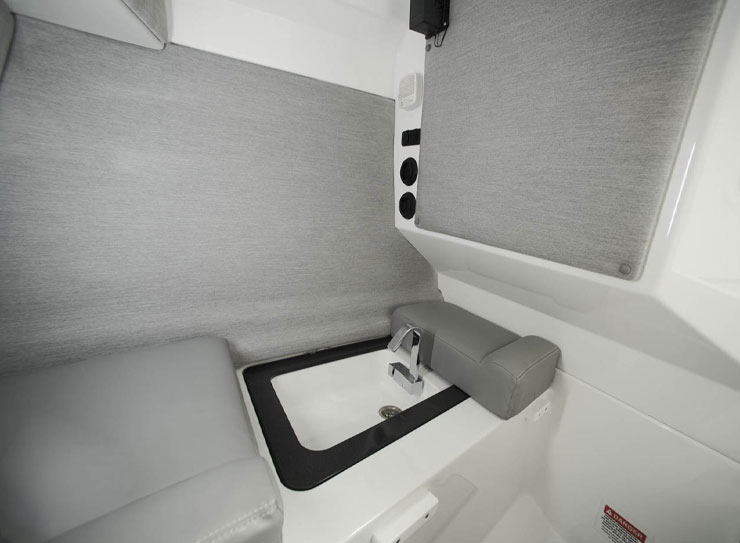

Sink Console (head compartment) - Detail
Sof-Trac Mat, Cockpit - Detail
Stainless Steel Foot Tread (helm only) - Detail
Teak Floor Pkg. (Bow,Cockpit,Head)
Throw Pillows, Weighted (10) - Detail
Throw Pillows, Weighted (4) - Detail

Exterior

Arch w/Hard Top
Arch w/Hard Top & Electric Awning
Arch, Alum, Folding w/Bimini - Detail
Arch, Elec Folding w/Bimini - Detail
Arch, Elec Folding w/Rotating Sunshade - Detail
Arch, Folding w/Rotating Sunshade - Detail
COBALT Lettering, Satin Black (exterior) - Detail
COBALT Lettering, Satin White (exterior)
Docking Lights-Stainless Steel - Detail
Flagpole w/Flag - Detail
Sof-Trac Mat, Swim Platform
Splash & Stow, Inflatable Mat
Swim Platform - Hydraulic w/Swim Step - Detail
Swim Platform Ladder
Swim Platform Transom Lighting - Detail
Teak Swim Platform
Transom Shower - Detail
Transom Tilt Switch - Detail
Underwater Lighting - Detail
Wakeboard Racks, Triton 2 (Roswell) na w/hardtop

Canvas

Bow Tonneau Cover - Detail
Cockpit Tonneau Cover - Detail
Mooring Cover - Detail

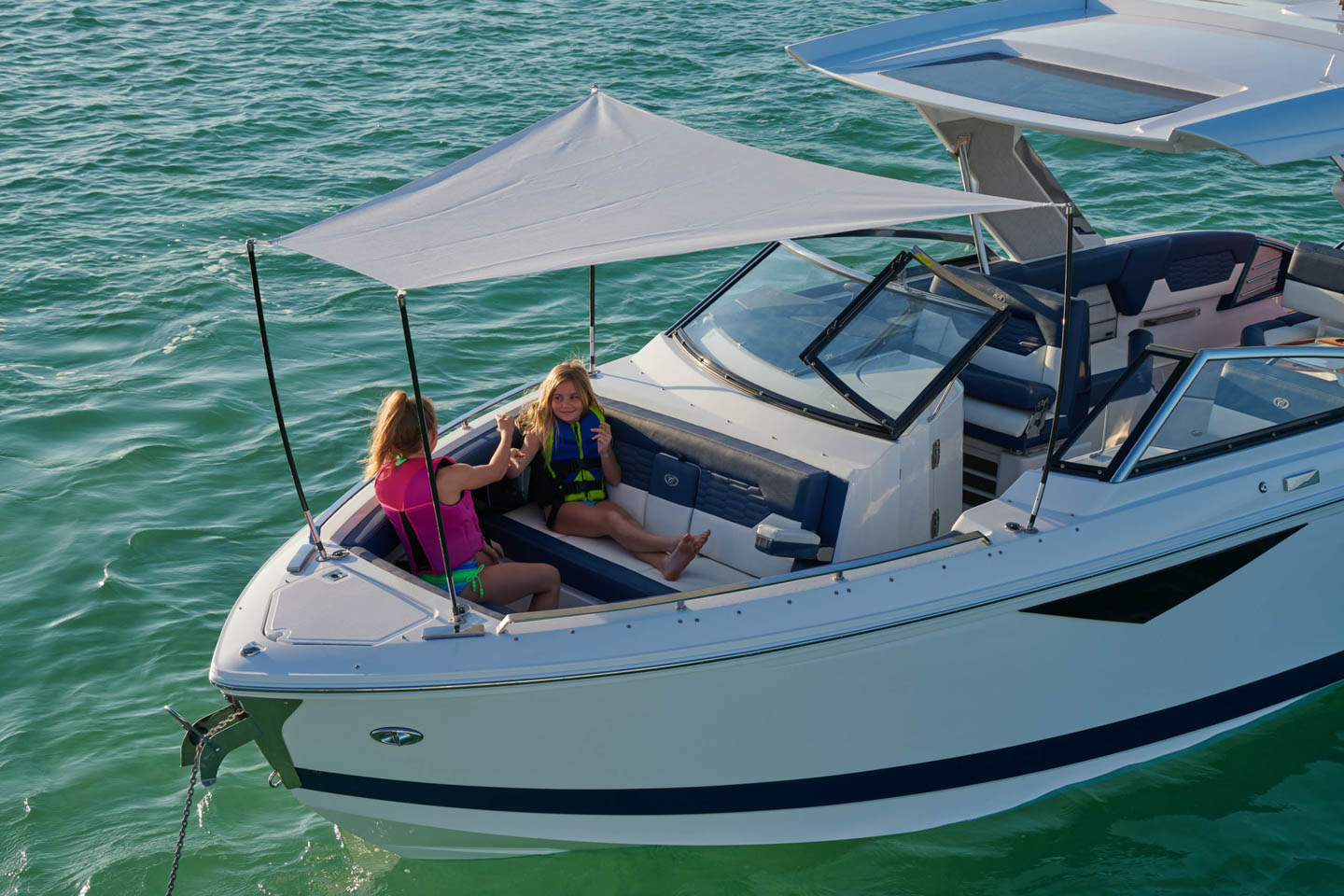

Shade Sail, Bow
Bimini, Premium Easy-Fold - Detail

Structural & Safety

Battery Maintainer/Charger, 110v - Detail
Battery Maintainer/Charger, 220v - Detail
Bow Thruster - Detail
CE Requirements
Cruise Control-Zero Off
Rearview Mirror, PTM w/Custom Cover - Detail
Rearview Mirror, Roswell w/Custom Cover
Tool Kit - Detail
Trim Tabs, Pro Control
Trim Tabs, Pro Control Auto
Windlass, All Chain w/Anchor - Detail

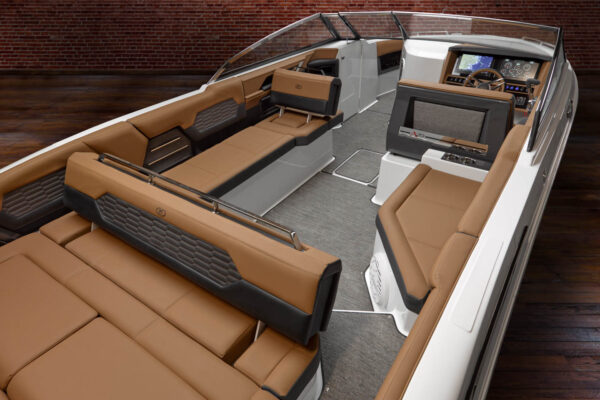

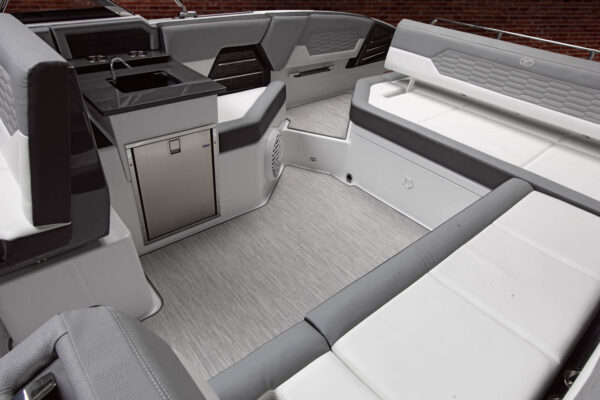

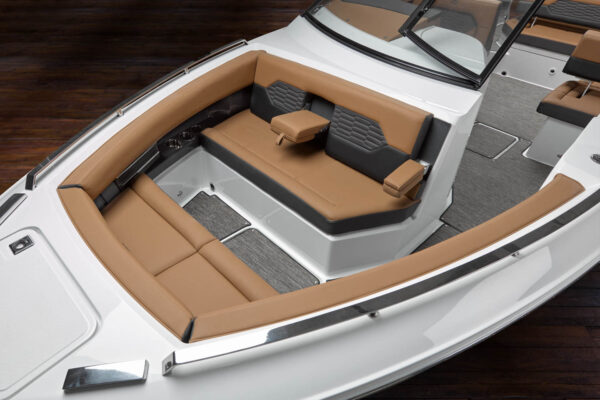

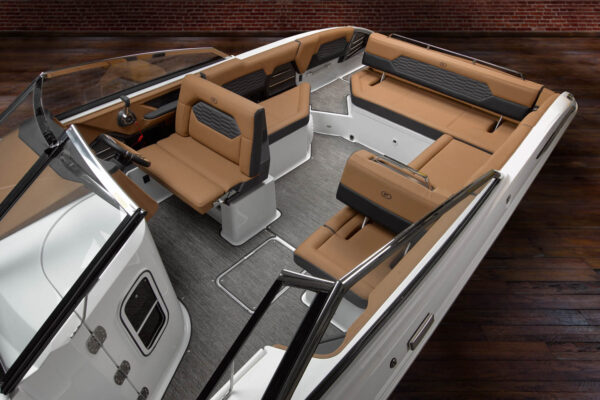

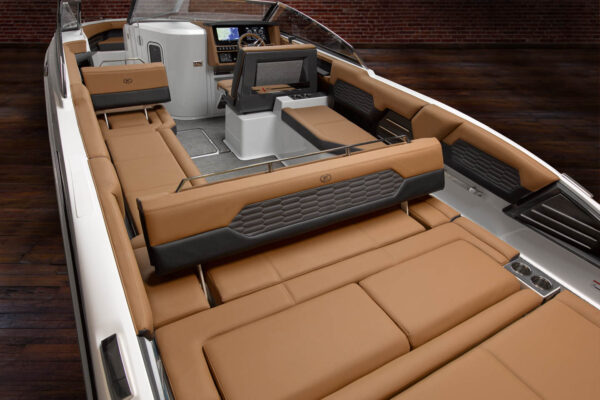

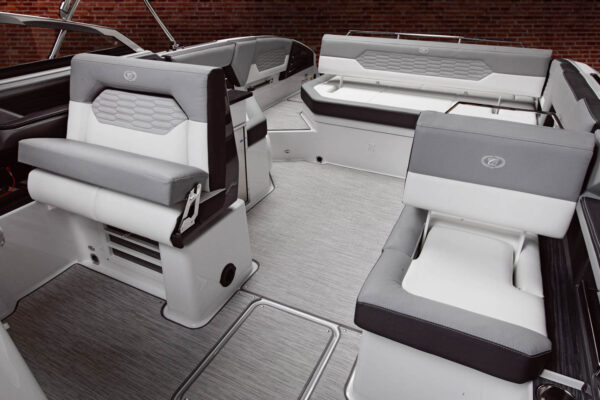

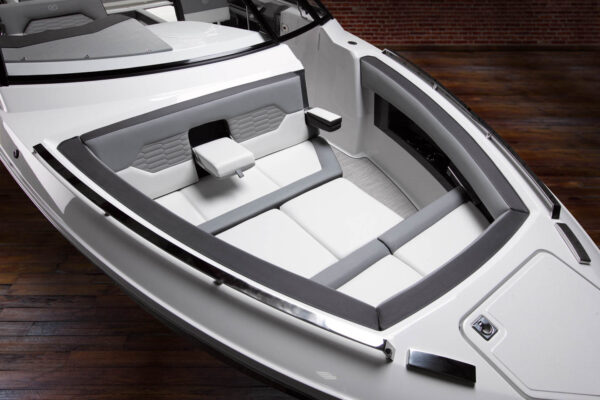

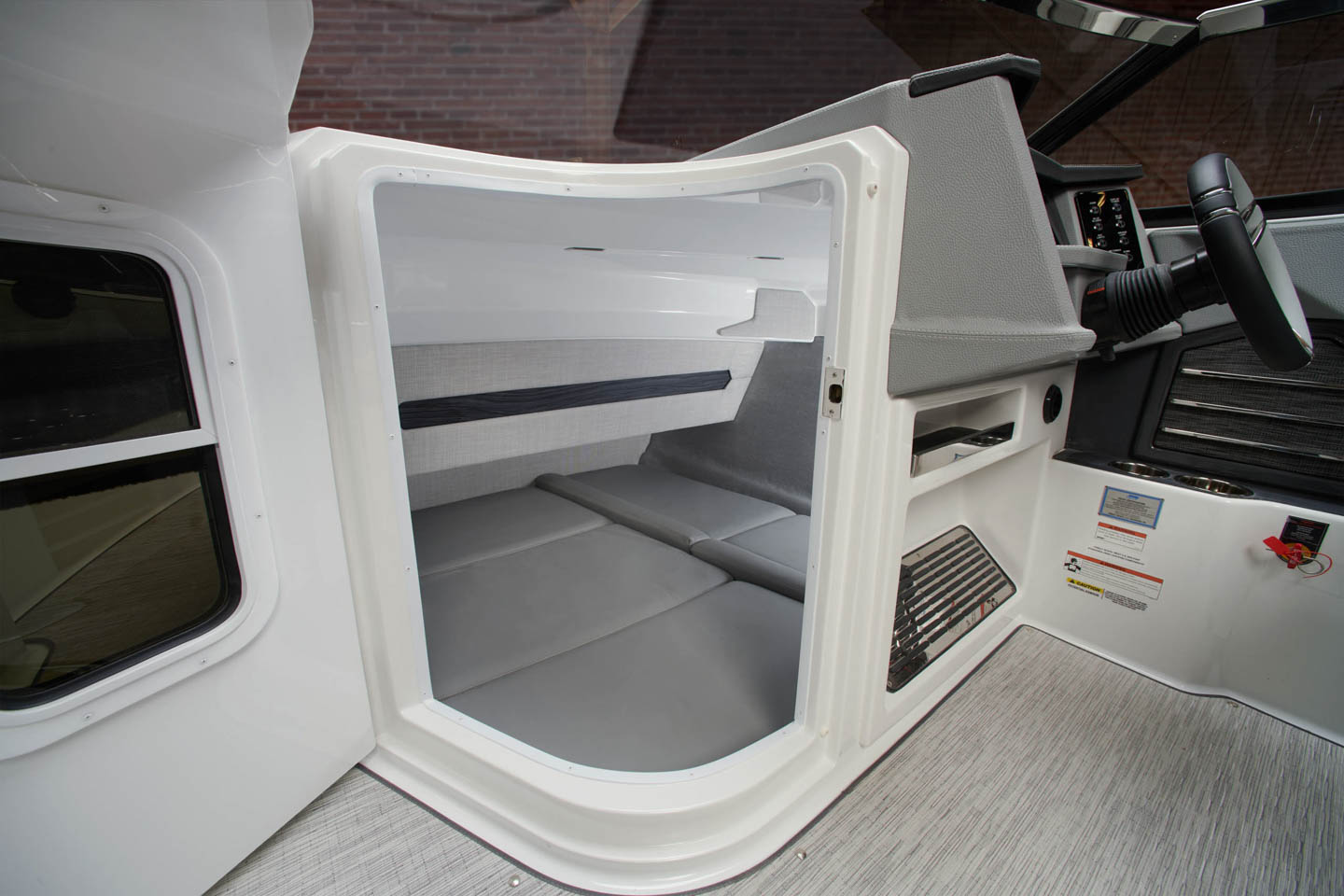

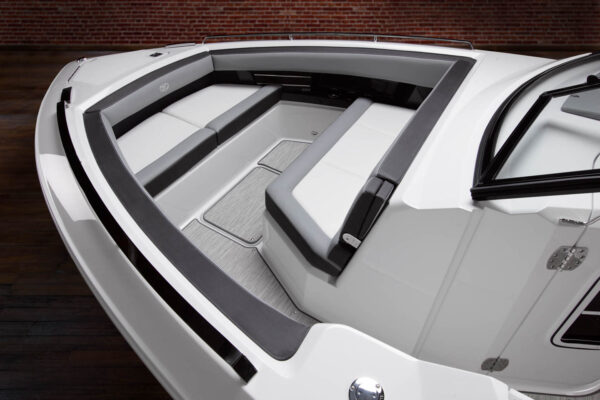

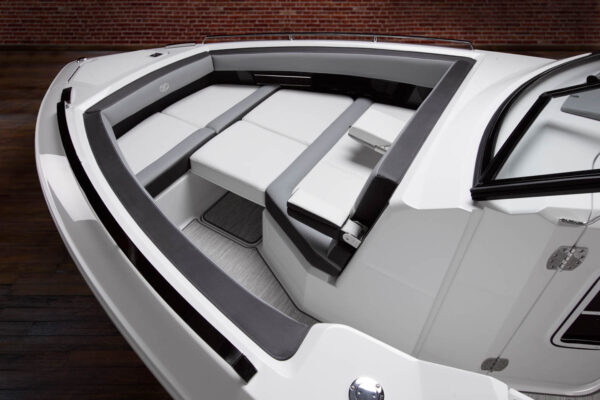

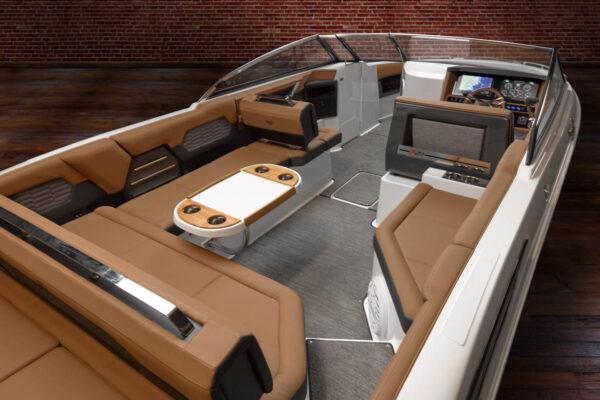

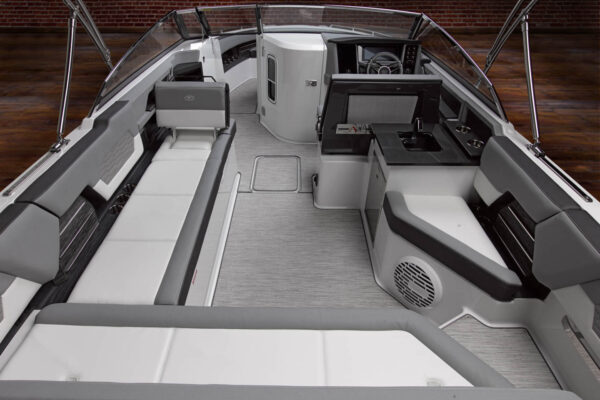

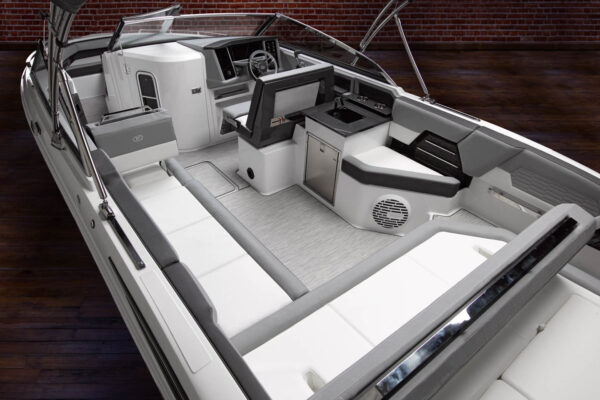

A29 Interior

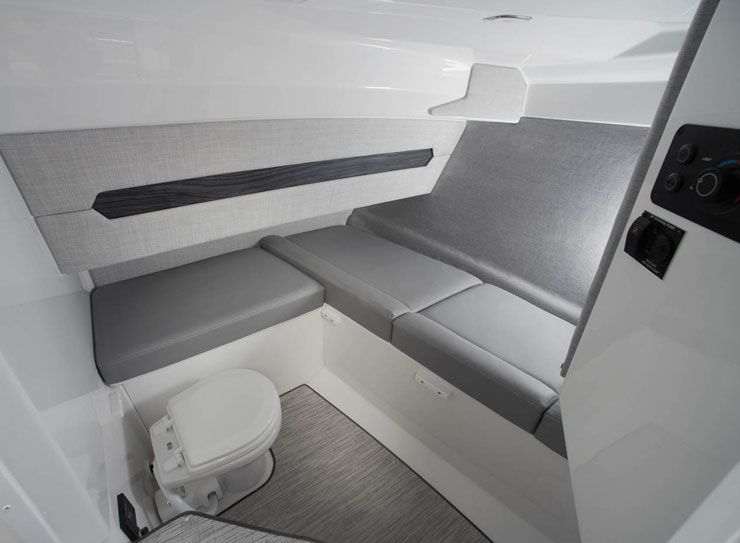

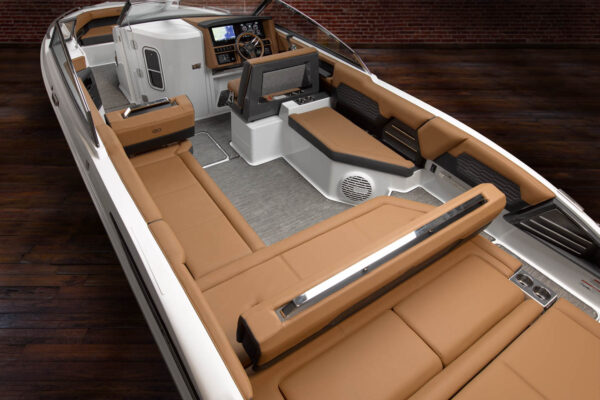

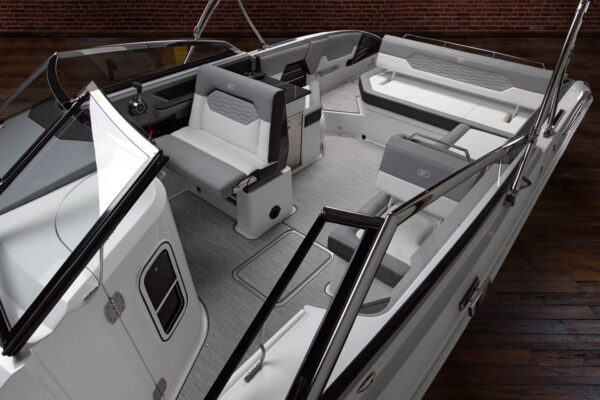

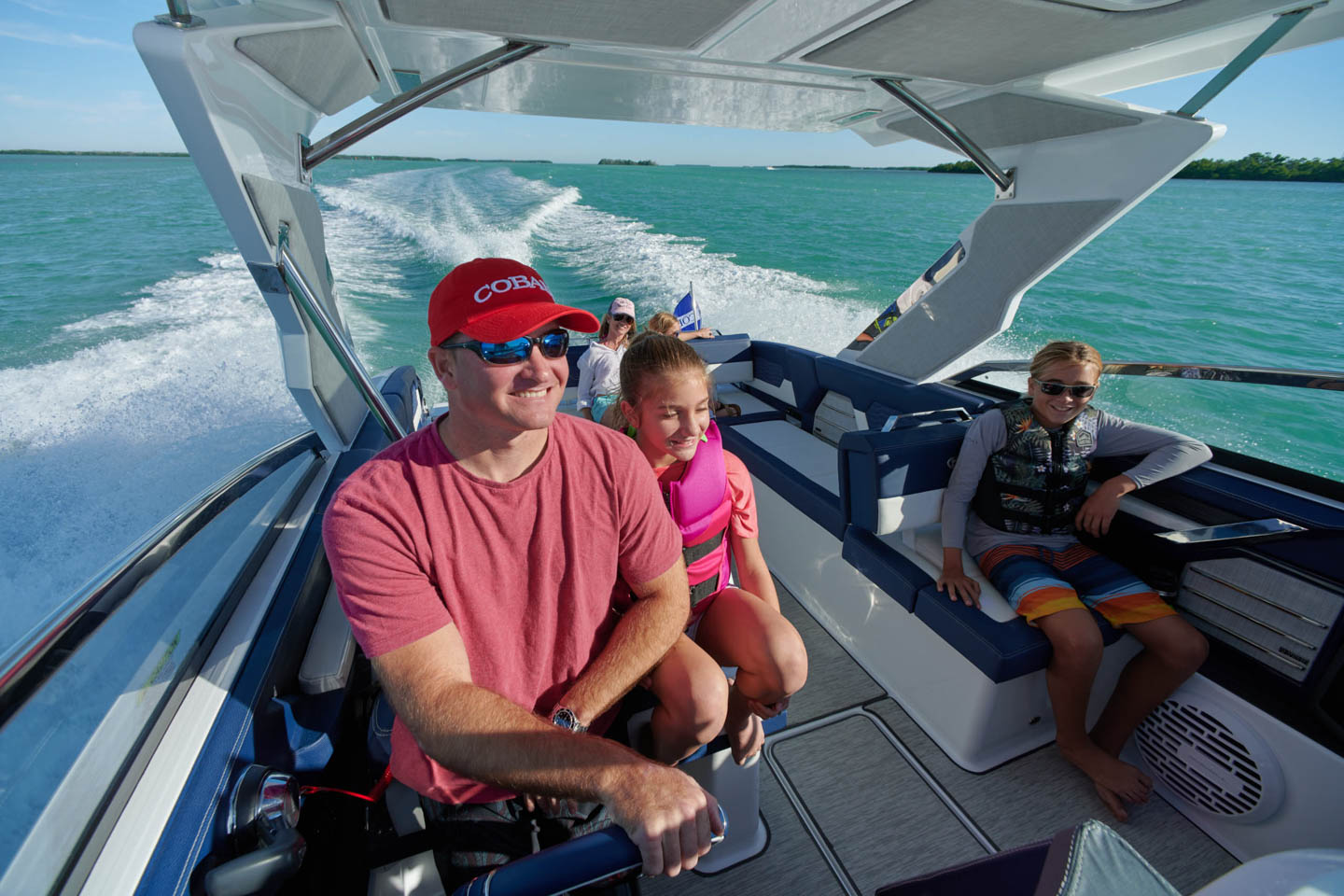

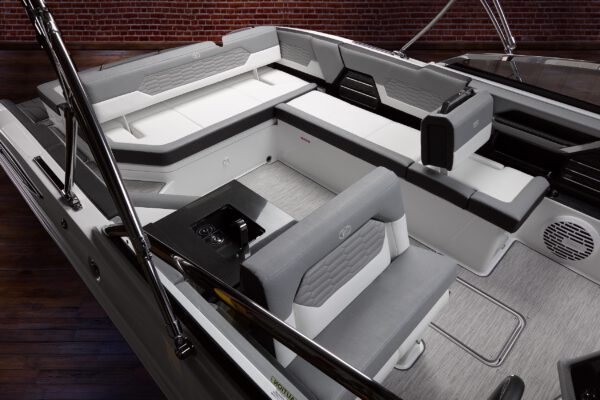

The Cobalt A29 interior is designed for comfort, space, and intuitive control. Featuring a spacious day cabin, premium materials, and an integrated Garmin glass cockpit, it delivers a refined and functional onboard experience.
